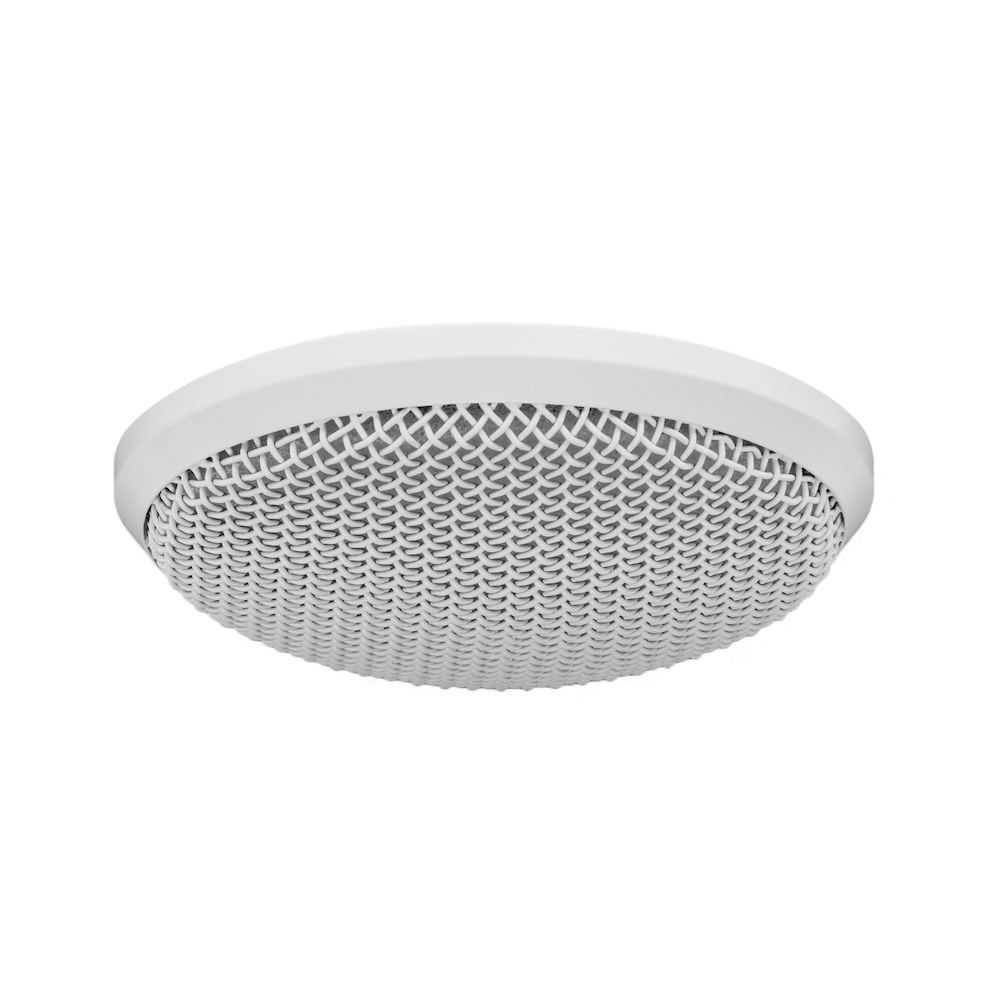

AX M70W
Flush Mount High Output Ceiling Microphone
$546.00
- High output for distance miking
- Immunity from RF interference
- Miniaturized integrated preamp circuitry
- 12 mm gold vapor diaphragm
- Includes plenum rated box
The M70 flush mount condenser microphone is designed for distance miking. Features include a fully integrated preamp, an extremely high sensitivity rating of 38 millivolts, and a small footprint of only 3 inches in diameter. The M70 applications include video conferencing, distance learning, hospital rooms, surveillance, and ambient room miking. The M70 offers a flush mount solution, easy installation, and allows the microphone to completely disappear from view without sacrificing sound quality.
The M70 capsule is housed within a patented cradle that enables the microphone to be aimed and focused up to an angle of 45 degrees towards the sound source. In addition, the M70 has complete immunity from RF interference caused by cell phones and GSM devices.
The M70 ceiling microphone terminates in a terminal block connector and is easy to install, requiring just a 2-inch hole to be drilled with no additional tools.
Designed, assembled, and tested by Audix in the USA.
Note: The M70 comes in stock white and is also available in a satin nickel finish. Dante | AES67 solutions are also available.
Find Online
The M70 capsule is housed within a patented cradle that enables the microphone to be aimed and focused up to an angle of 45 degrees towards the sound source. In addition, the M70 has complete immunity from RF interference caused by cell phones and GSM devices.
The M70 ceiling microphone terminates in a terminal block connector and is easy to install, requiring just a 2-inch hole to be drilled with no additional tools.
Designed, assembled, and tested by Audix in the USA.
Note: The M70 comes in stock white and is also available in a satin nickel finish. Dante | AES67 solutions are also available.
Flush Mount Ceiling Microphone
for Clear, Interference-Free Distance Miking
Specifications
-
Polar Pattern HpercardioidSensitivity 32 mV/Pa @ 1kMaximum SPL ≥130 dB dBLength 179.53 inTransducer Type Condenser dynamic / electret
-
Frequency Response 60 Hz - 10 kHzOutput Impedence 150 ΩConnector Terminal block connector
-
Coverage Examples
Coverage patterns may vary depending on room acoustics and signal chain, but these diagrams provide a conservative estimate of expected pick-up in reasonable to poor acoustic spaces.
Class Room
Room Dimension: 20’x20’ Square
Ceiling Height: 8’–10’

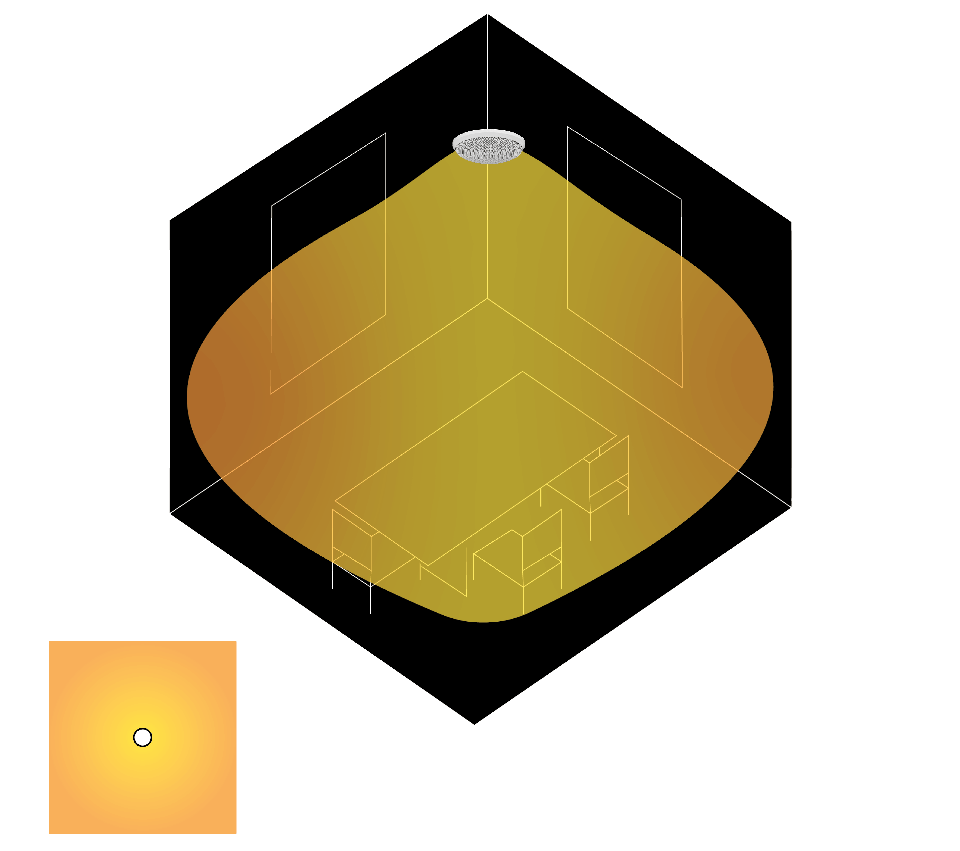

Huddle Room
Room Dimension: 8’–12’ Square
Ceiling Height: 8’–10’

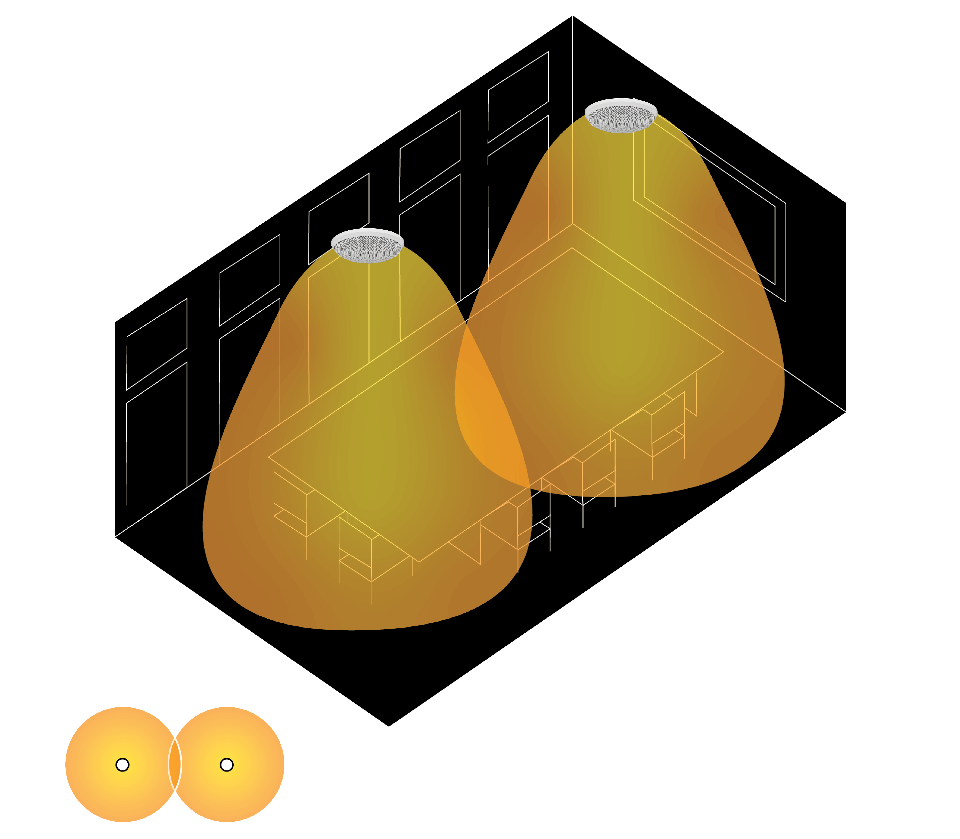

Conference Room
Room Dimension: 10’ x 20’
Ceiling Height: 8’–10’

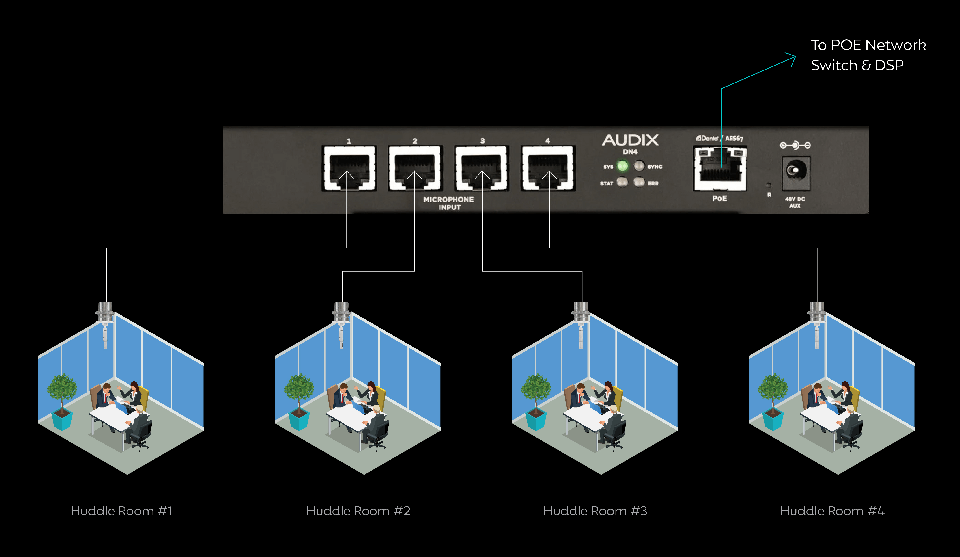

Multiroom deployment

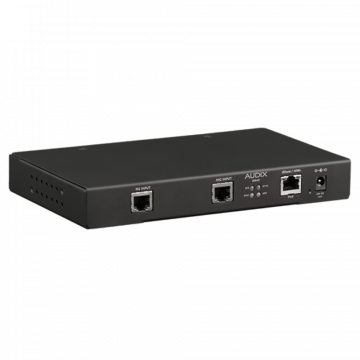

Experience seamless multiroom deployment with the AUDIX DN4. Offering advanced Dante/AES67 network audio input and adaptable preamp control, the DN4 is ideal for microphone installations across multiple rooms. Ensure unparalleled flexibility and precision in managing audio across diverse spaces.
Experience seamless multiroom deployment with the AUDIX DN4. Offering advanced Dante/AES67 network audio input and adaptable preamp control, the DN4 is ideal for microphone installations across multiple rooms. Ensure unparalleled flexibility and precision in managing audio across diverse spaces.
