VX10
Elite Condenser Vocal Microphone
The VX10 condenser vocal microphone was designed to set new performance standards for live sound and broadcast applications. With a uniformly controlled frequency response from 40 Hz – 20 kHz, the VX10 is highly sensitive to transient response and will reproduce vocals and speech with exceptional detail and realism.
The VX10 has a cardioid polar pattern which helps isolate vocals. This mic includes a 21 mm gold vapor capsule and a multi-stage internal pop filter. It is also available in a low output model (VX10LO) for greater control with loud stage volumes or extremely powerful vocalists.
Aside from vocals, the VX10 cardioid condenser microphone will capture acoustic instruments such as guitars, woodwinds, brasses, percussion toys, drum overheads, hi-hats, and pianos.
Designed, assembled, and tested by Audix in the USA.
Transducer Type | Condenser |
---|---|
Frequency Response | 40 Hz – 20 kHz |
Polar Pattern | Cardioid |
Output Impedance | 250 ohms |
Sensitivity | VX10 – 24 mV / Pa @ 1k VX10LO – 4 mV / Pa @ 1k |
Equivalent Noise Level | 19 dB (A-weighted) |
Signal to Noise Ratio | 75 dB |
Off Axis Rejection | >20 dB |
Maximum SPL | ≥138 dB (w/ -10 pad) |
Power Requirements | 48-52 V |
Connector | 3-pin XLRm |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
Materials / Finish | Zinc Alloy & Machined Brass / Black Finish |
Weight | 310 g / 10.9 oz |
Length | 180 mm / 7.1 in |

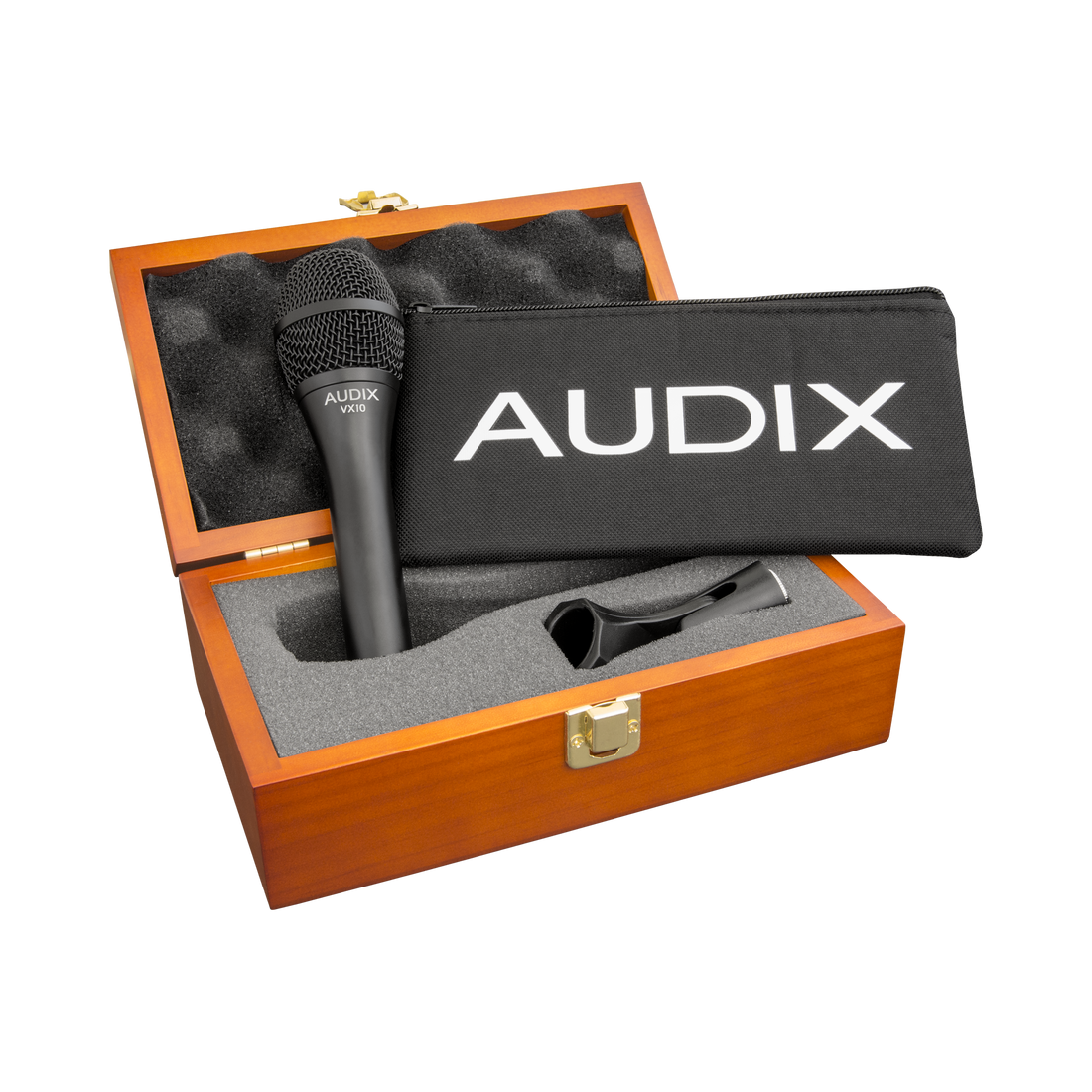

1x VX10 Vocal Microphone
1x Lined Wooden box
1x MC1 Microphone Clip
1x P1 Carrying pouch
