TM1

Omni-directional Test and Measurement Microphone

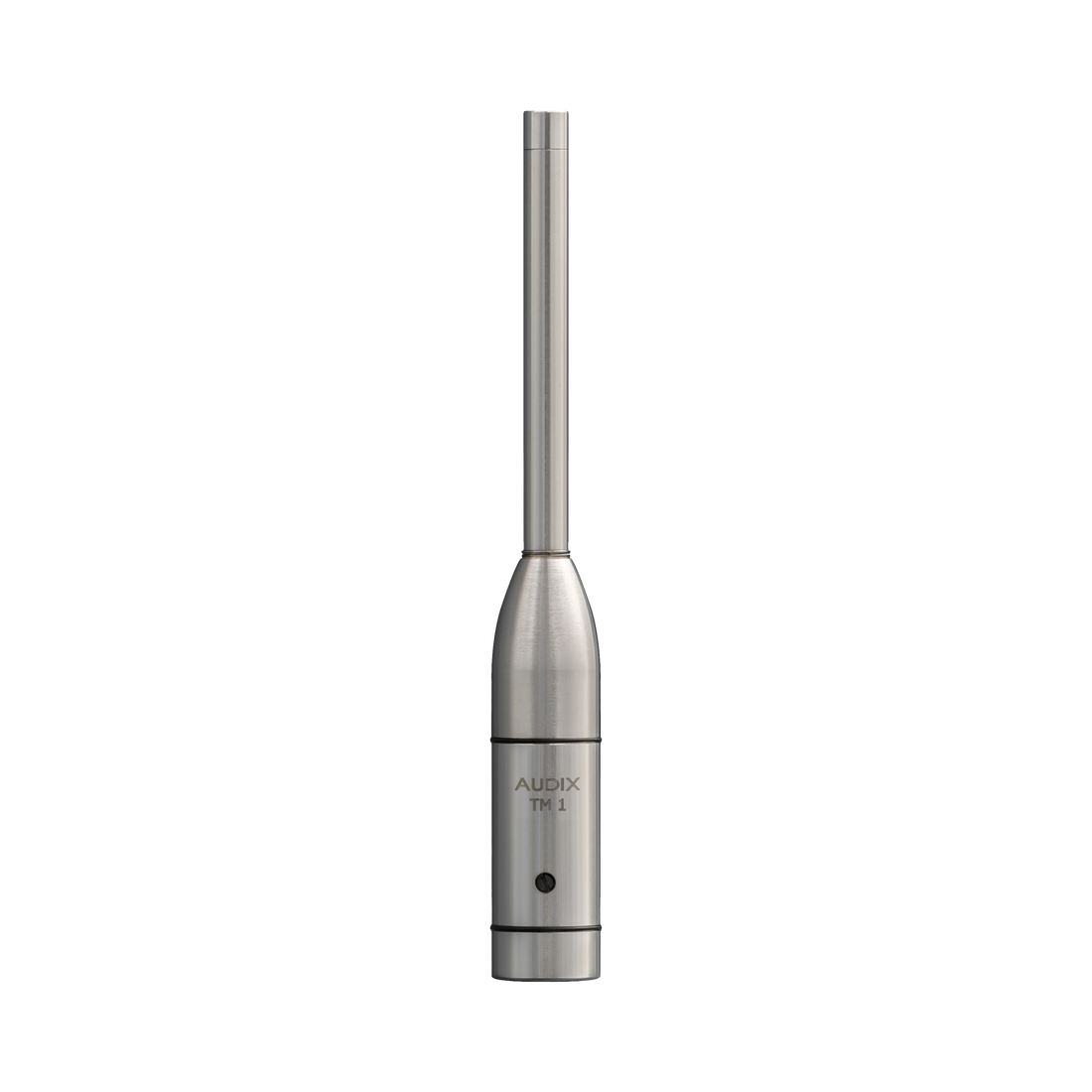

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.

Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz – 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.

The TM1 omnidirectional test and measurement microphone is designed, machined, assembled, and tested by Audix in the USA.

Model Variations

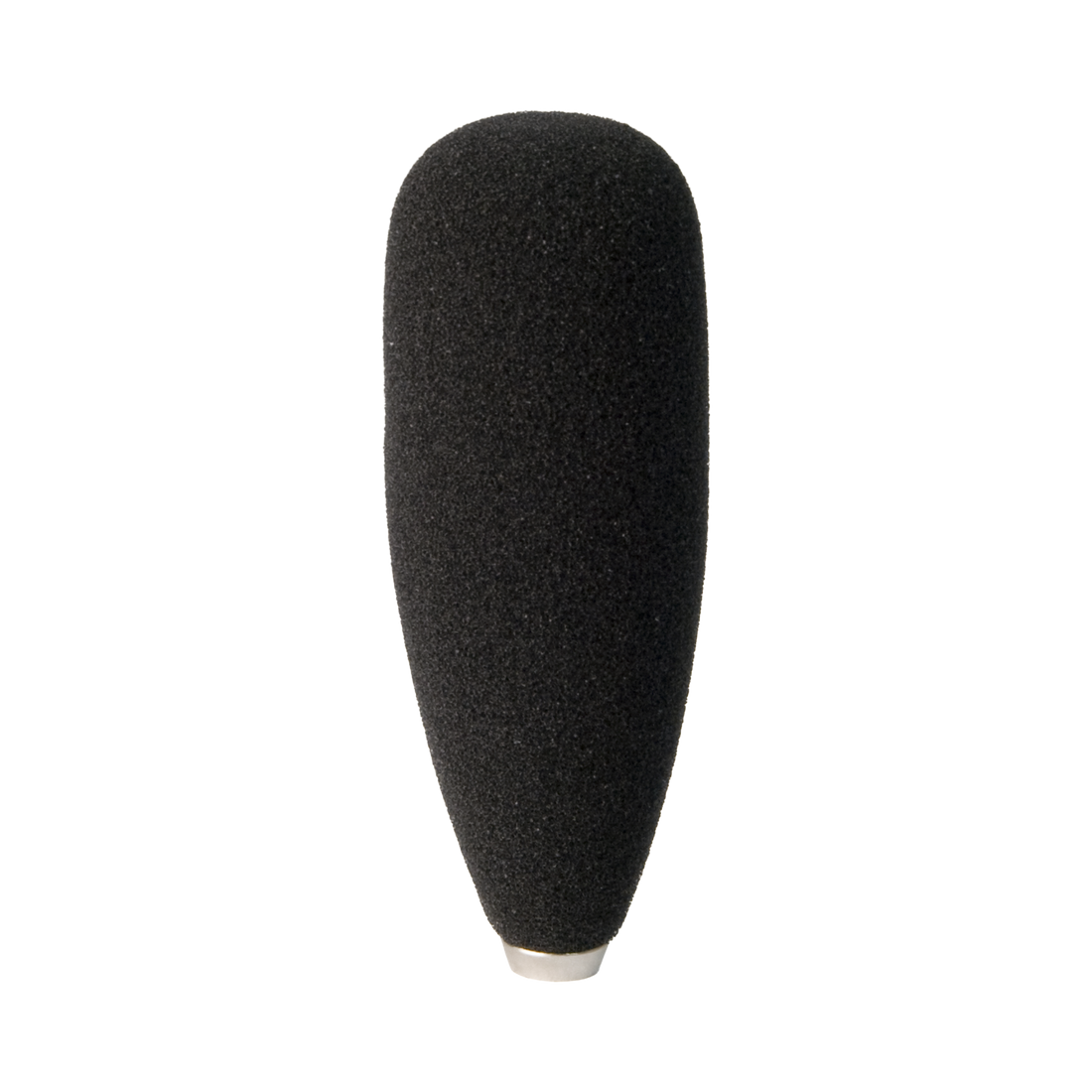

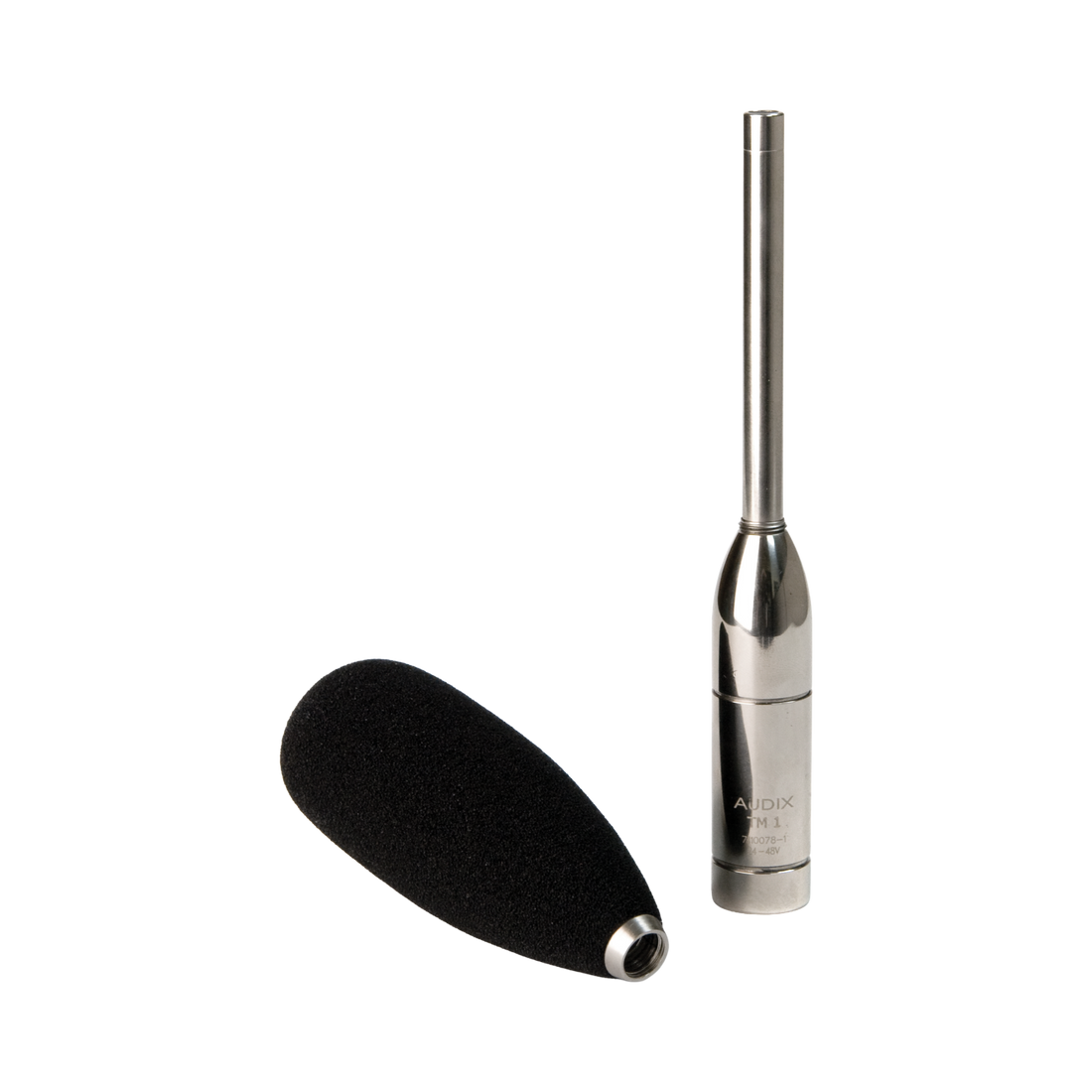

TM1PLUS – includes calibration data file and sensitivity, threaded acoustic windscreen, and CA4231 machined calibration adapter *

*Bruel & Kjaer® 4231 sound level calibrator or equivalent


3 Interest-Free Payments Available with
for orders $199 and up. Learn more
Where To Buy TM1 – Omni-directional Test and Measurement Microphone
Transducer Type Pre-polarized Condenser
Frequency Response 20 Hz – 20 kHz +/-2 dB
Polar Pattern Omni
Output Impedance 200 ohms
Sensitivity 6 mV / Pa @ 1k
Equivalent Noise Level 28 dB (A weighted)
Signal to Noise Ratio 66 dB
Maximum SPL 130 dB with distortion <1% 140 dB Max
Power Requirements 24 – 48 V Phantom
Power Consumption 8.9 mA @ 48 Volts
Connector Switchcraft® or Audix male XLR
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish 4 piece precision machined brass / Nickel Finish
Weight 132 g / 4.7 oz
Length 150 mm / 5.9 in
Download Spec Sheet

1x TM1 Test & Measurement Microphone
1x DCLIP Microphone Clip
1x Carrying Pouch
