Miniature Condenser Lug-Mounted Microphone
The MicroHP condenser instrument microphone is manufactured with a uniformly controlled cardioid polar pattern and provides excellent isolation and feedback control on stage. Used for professional stage and studio applications, the MicroHP is designed with clarity, excellent transient response, resistance to feedback, and high SPL capabilities.

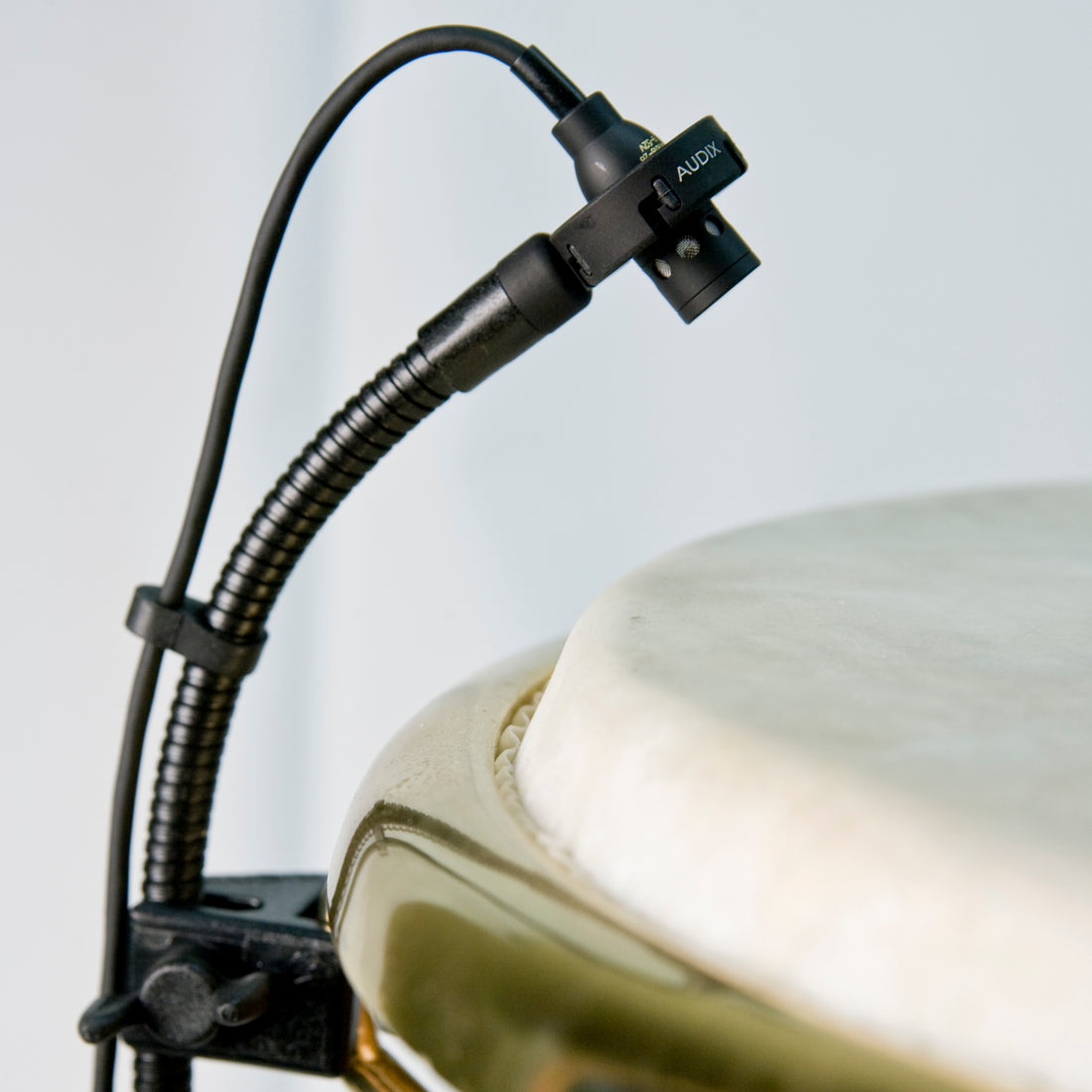

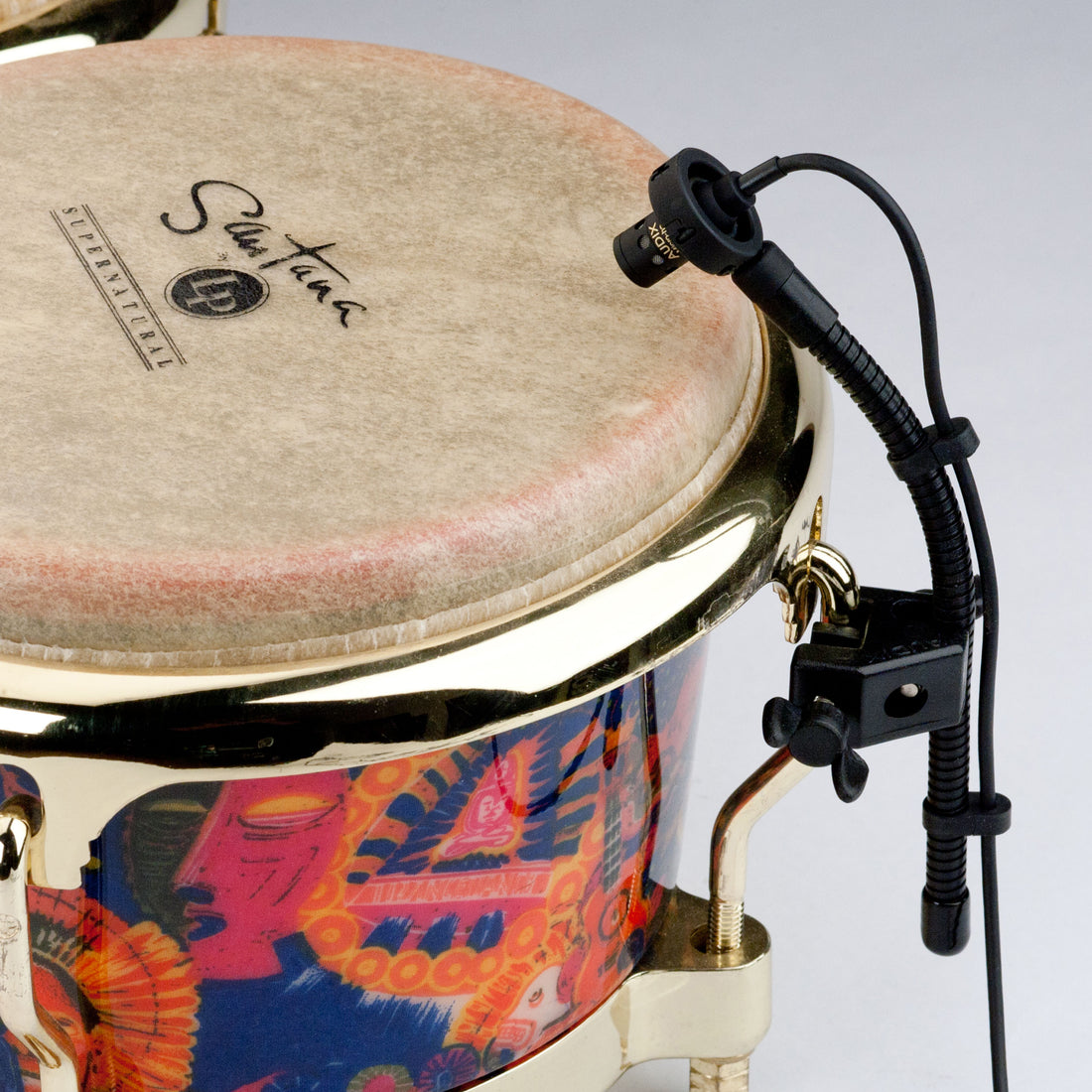

This mic is targeted for hand percussion instruments and drum instrument applications. Housed in an aluminum ring and isolated by means of a rubber shock mount system. The MicroHP attaches to the lug of an instrument via the Audix DCLAMP mounting system.
The MicroHP miniature condenser instrument microphone requires phantom power of 9 – 52 V.
Designed, machined, assembled, and tested by Audix in the USA.
|Transducer Type||Pre-Polarized Condenser|
|Frequency Response||40 Hz – 20 kHz|
|Output Impedance||250 ohms|
|Sensitivity||6 mV / Pa @ 1k|
|Equivalent Noise Level||24 dB|
|Signal to Noise Ratio||70 dB|
|Maximum SPL||≥140 dB|
|Power Requirements||9 – 52 V phantom|
|Connector||3-pin mini to 3-pin XLRm (APS910)|
|Polarity||Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector|
|Materials / Finish||Machined Brass Capsule / Black Finish|
|Weight||47 g / 1.6 oz|
|Length||30 mm / 1.14 in|
1x MicroHP Instrument Microphone
1x 6′ shielded cable

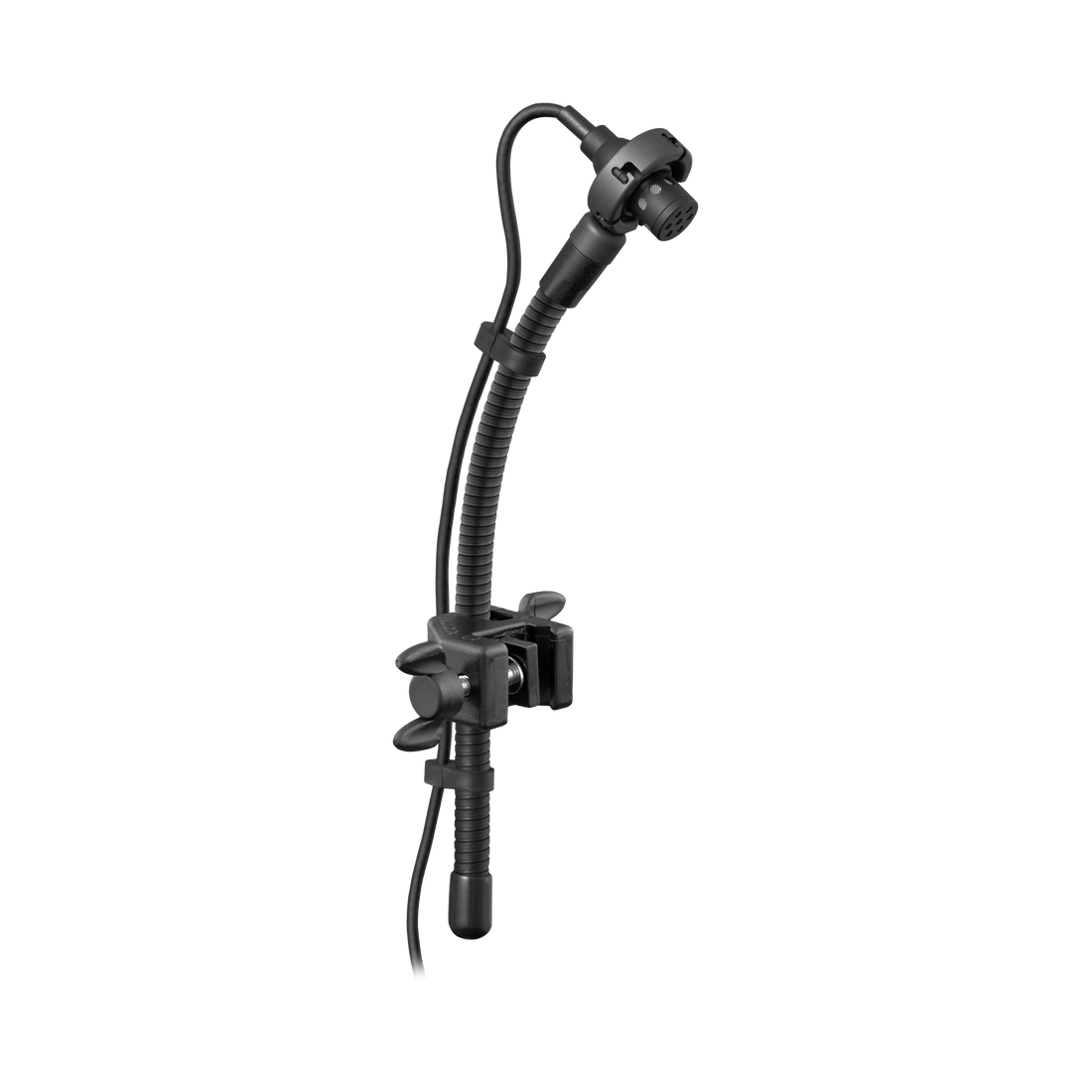

1x DCLAMPMICRO with flexible mini-gooseneck and drum tension lug clamp
1x APS910 48 V Phantom Power Adapter
1x WS20 External windscreen
1x P1 Carrying Pouch
