MicroD

Miniature Condenser Instrument Microphone

The MicroD is primarily a drum and percussion instrument microphone for professional stage and studio applications. The MicroD has a uniformly controlled hypercardioid polar pattern and a smooth, accurate response in its frequency range.

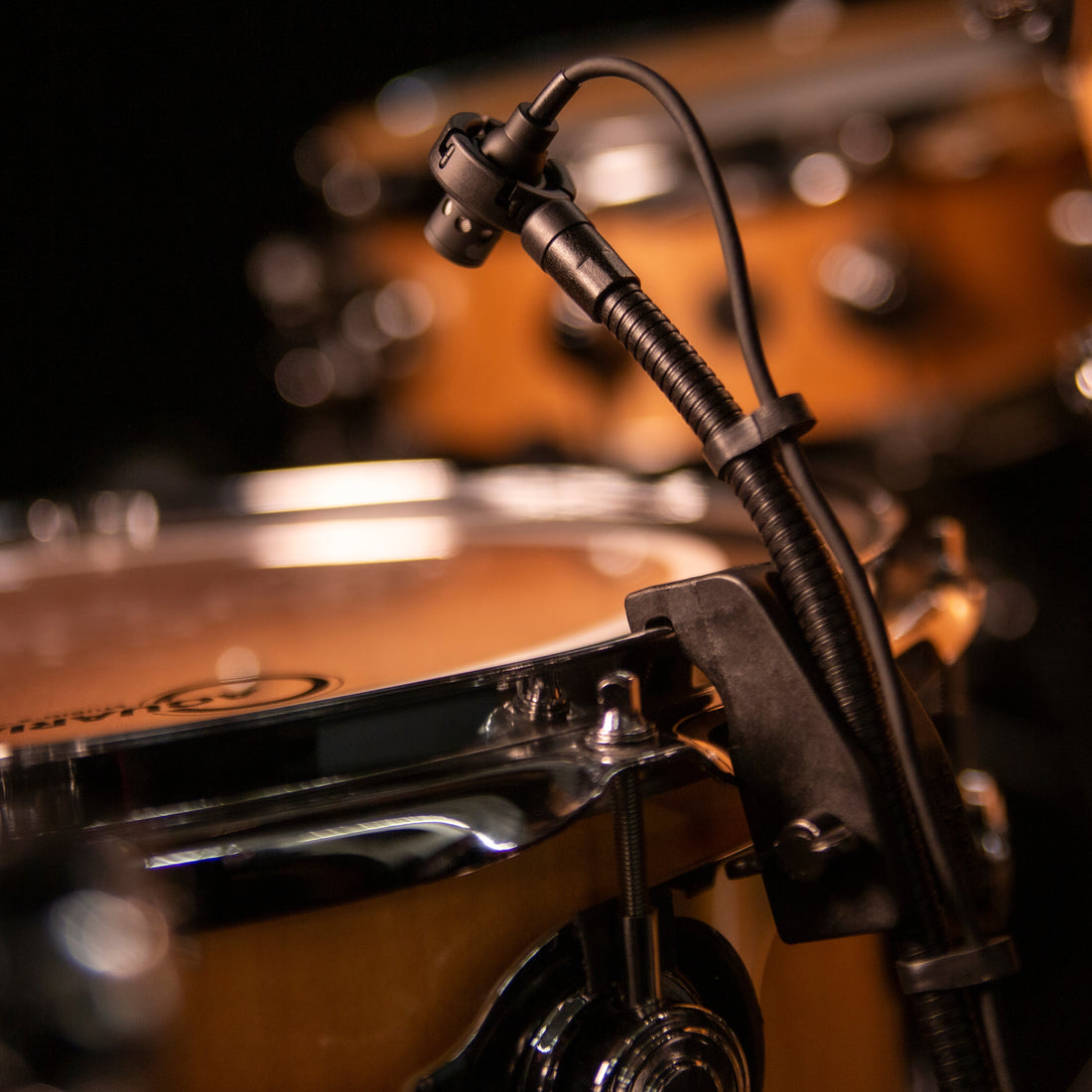

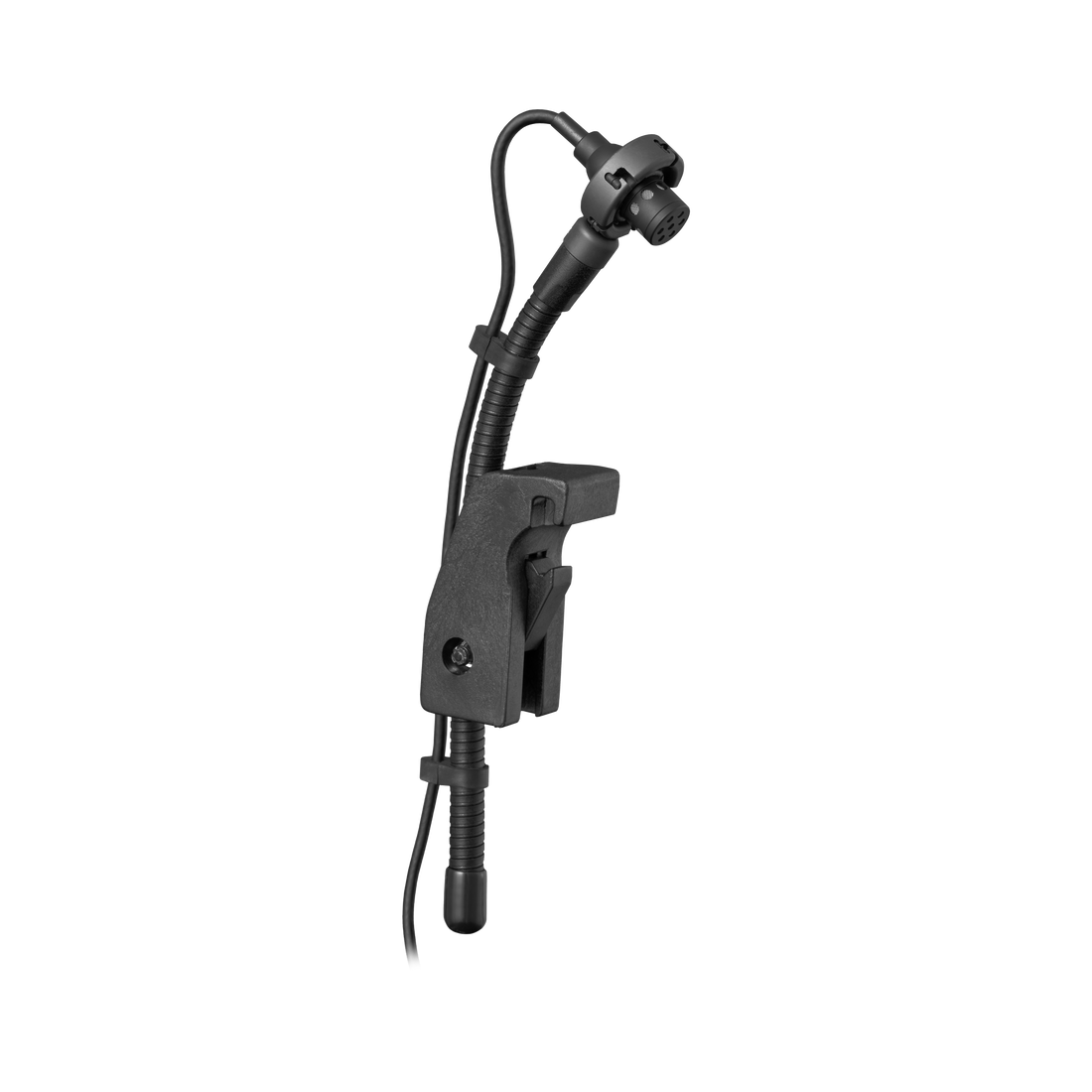

This microphone is lightweight, compact, and simple to use. The MicroD is housed in an aluminum ring and isolated by means of a rubber shock mount system. The MicroD hypercardioid microphone attaches easily and firmly to a standard drum rim utilizing the patented DVICE rim mount system.

Designed, machined, assembled, and tested by Audix in the USA.


Where To Buy
  • Specifications
  • What’s in the Box?
  • Videos
  • Model Variations and Options
  • Guides and Manuals
Transducer Type Pre-Polarized Condenser
Frequency Response 40 Hz – 20 kHz
Polar Pattern Hypercardioid
Output Impedance 250 ohms
Sensitivity 5.6 mV / Pa @ 1k
Equivalent Noise Level 24 dB
Signal to Noise Ratio 70 dB
Maximum SPL ≥140 dB
Power Requirements 9 – 52 V phantom
Connector 3-pin mini to 3-pin XLRm (APS910)
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Machined Brass Capsule / Black Finish
Gooseneck Flexible Steel
Weight 47 g / 1.6 oz
Length 30 mm / 1.14 in
Download Spec Sheet

1x MicroD Instrument Microphone
1x 6′ Shielded Cable
1x DVICEMICRO Optional Flexible Mini-gooseneck with Springloaded Rim Mount Clamp
1x APS910 48 V Phantom Power Adapter
1x WS20 External windscreen
1x P1 Carrying Pouch

  • MicroD Trio – Three  (3) MicroD microphones. Includes pouch.
