M70WD

Flush-Mount Ceiling Microphone for the Audix Dante | AES67 Integrated Microphone System

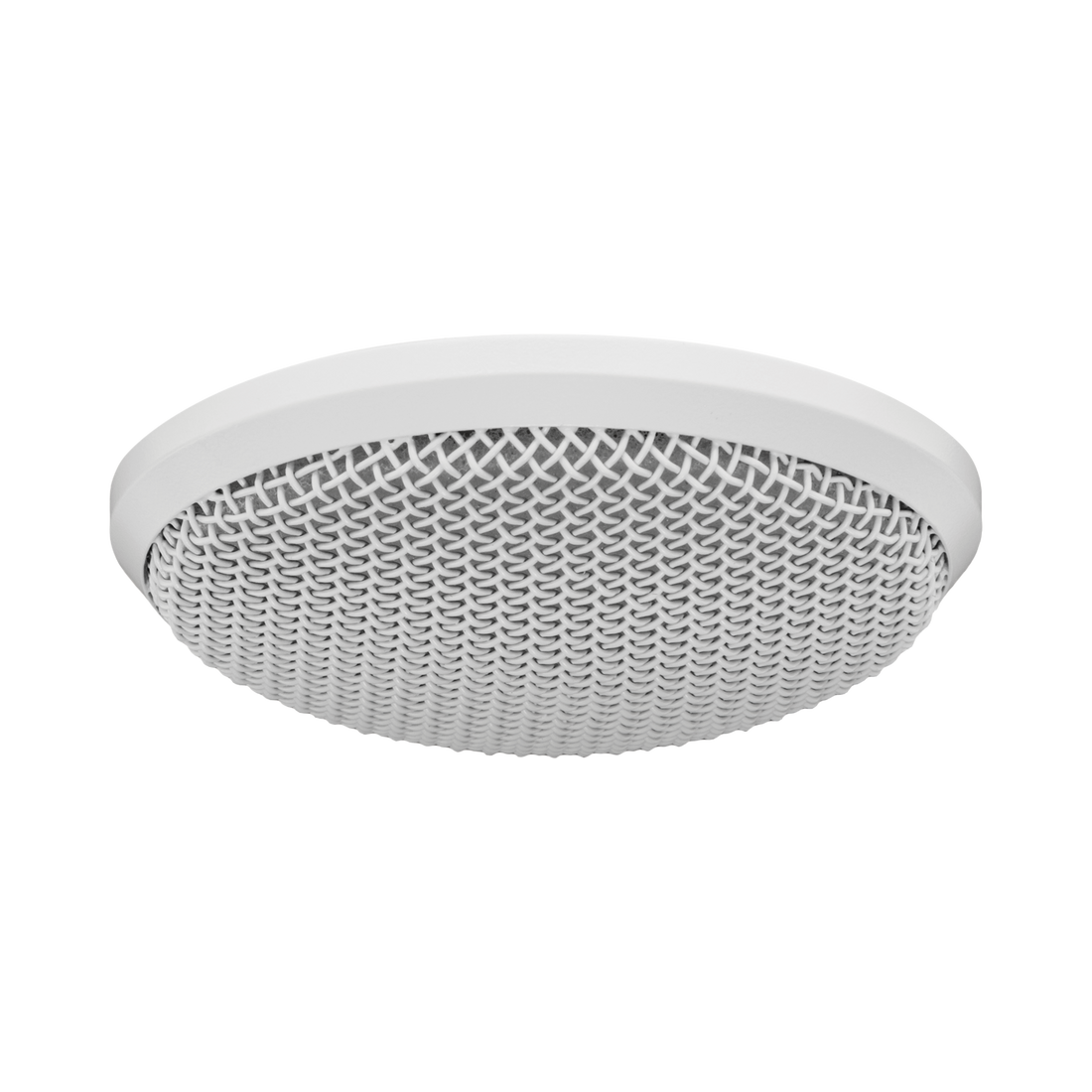

The M70WD is a steerable, flush-mount condenser microphone designed for distance miking in a variety of applications, including video conferencing, distance learning, hospital rooms, surveillance, and ambient room miking. The flush-mount configuration and a footprint of only three inches in diameter allow the M70WD to virtually disappear. Dual-color LEDs can be set via a plugin to indicate mic status.

The M70WD capsule is housed within a patented cradle that allows the microphone to be aimed up to an angle of 45 degrees. Other features include a fully integrated preamp and an extremely high sensitivity rating of 38 millivolts. In addition, the M70WD has complete immunity from RF interference caused by cell phones and GSM devices. Installing the M70WD requires just one 2-inch hole in the ceiling, with no additional tools needed.

(Requires DN4 or DN43 microphone interface, sold separately)

FEATURES

High output for distance miking
Aimable up to a 45-degree angle
Miniaturized integrated preamp circuitry
Immunity from RF interference

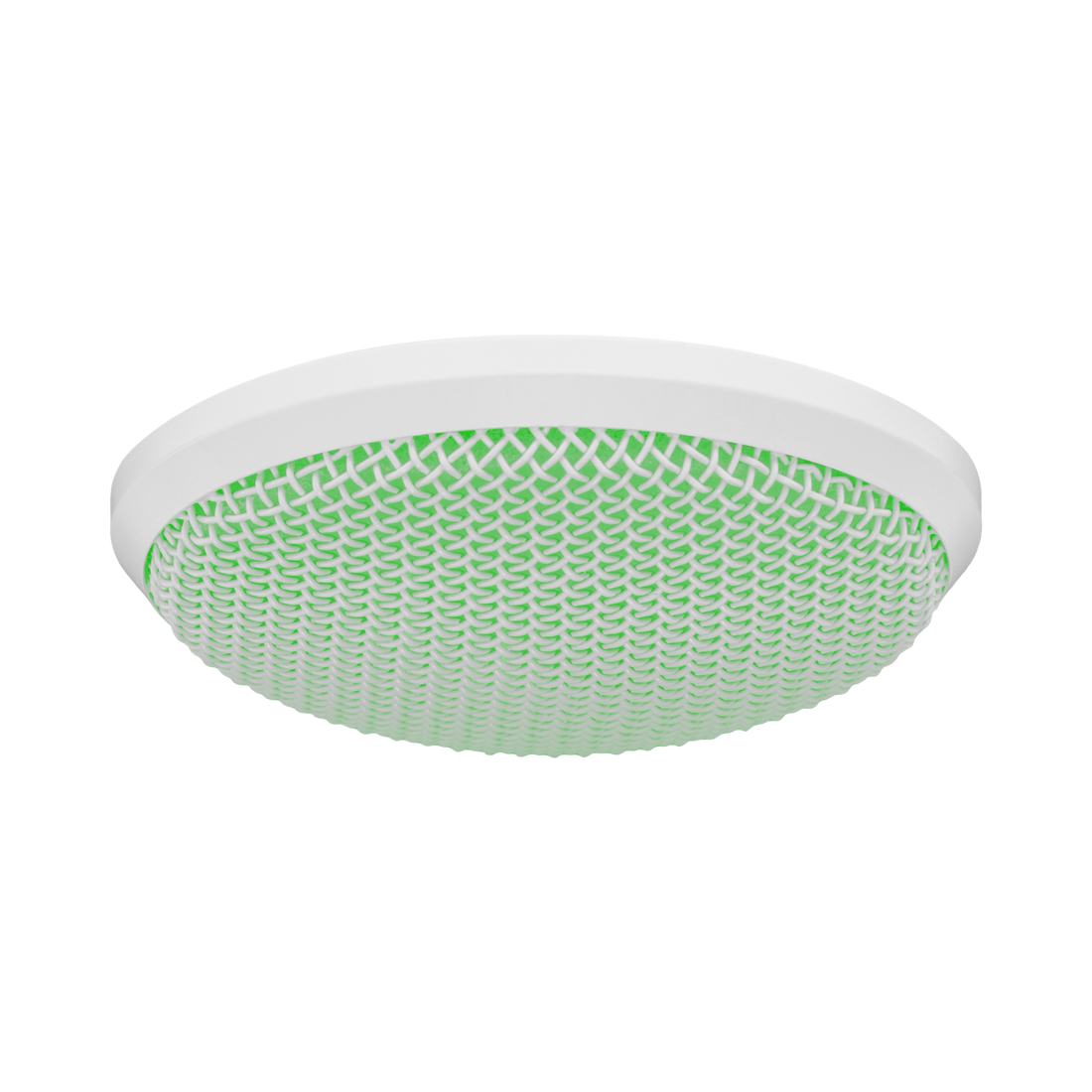

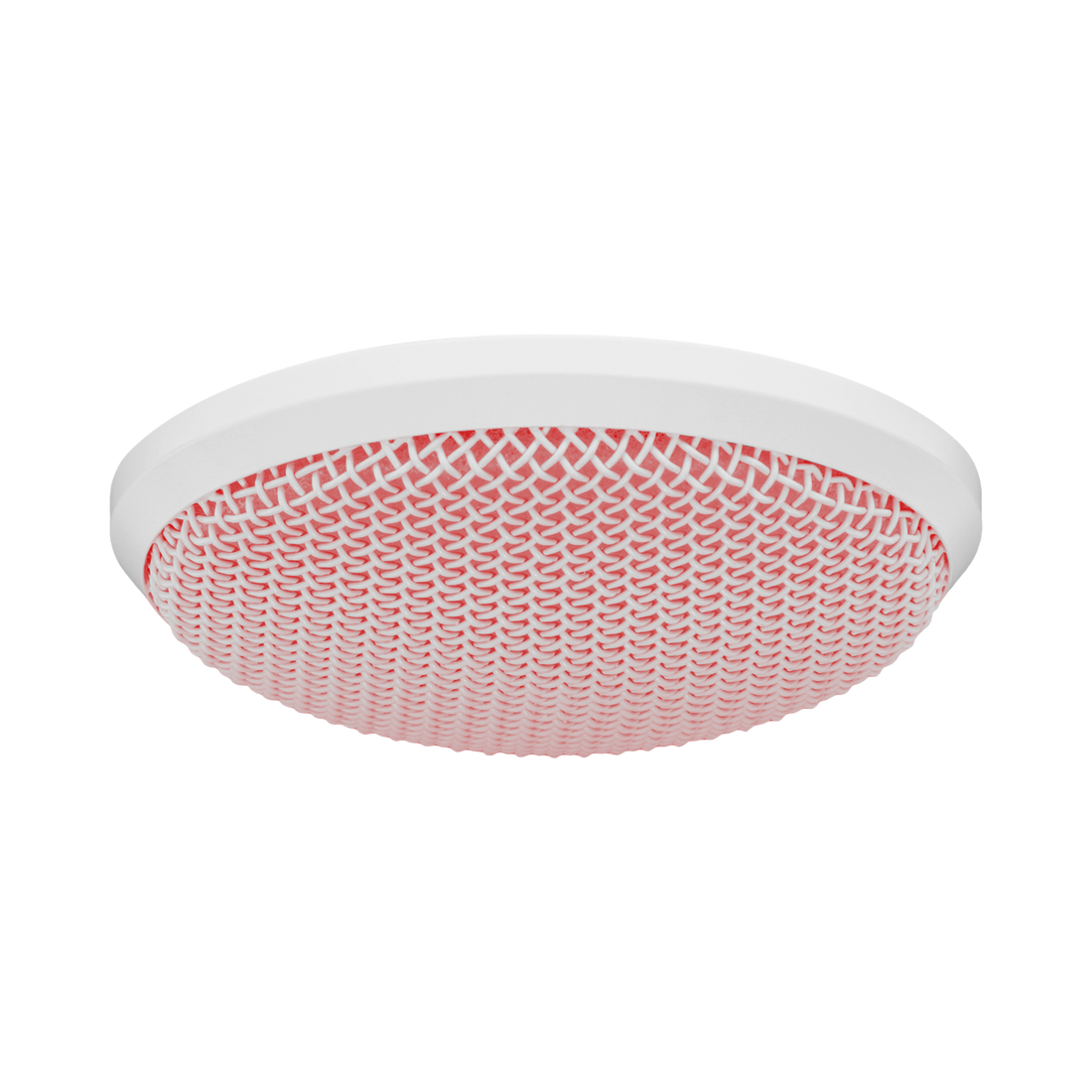

Two-color LED status indicator
RJ45 connectors for plug-and-play integration with the Audix Dante | AES67 Integrated Microphone System
No external power adaptor required
Designed, assembled, and tested by Audix in the USA
3-year warranty

DANTE MADE SIMPLE – BY AUDIX
The M70WD is designed exclusively for the Audix Dante | AES67 Integrated Microphone System, which delivers high-quality audio and all microphone functions – including on-off contact closure and LED status indicators – through a single CAT5 – CAT7 cable with RJ45 connections. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost. And like all Audix microphones in the system, the gain structure is optimized for its intended use, providing quality audio at the DSP. The result is a true plug-and-play installation.

Where To Buy
  • Specifications
  • What’s in the Box?
  • Guides and Manuals
Transducer Type Condenser
Frequency Response 60 Hz – 10 kHz
Polar Pattern Cardioid
Output Impedance 150 ohms
Sensitivity 38 mV / Pa @ 1k
Equivalent Noise Level 22 dB
Signal to Noise Ratio 72 dB
Maximum SPL ≥130 dB
Dynamic Range 108 dB
Power Requirements 18 – 52V phantom
Connector RJ45
Polarity CAT5, CAT5e, CAT6, CAT6a, or CAT7
Materials / Finish Brass, Aluminum and steel / white or nickel finish

M70WD ceiling microphone
1.56 mm / 0.063 inch seismic and fire cable restraint
