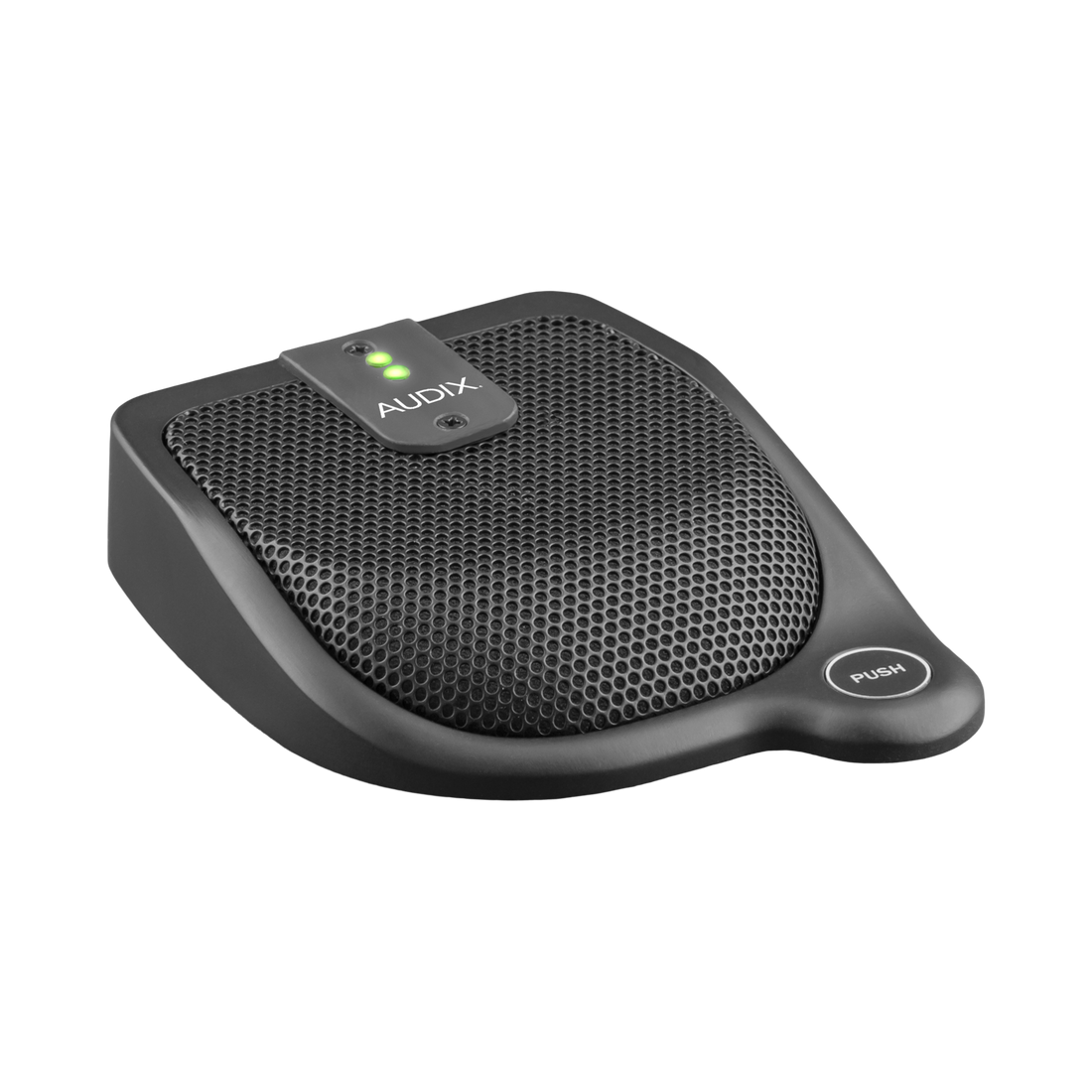

M63
Logic-enabled Condenser Boundary Microphone
The M63 is a condenser boundary microphone featuring programmable functionality including a local toggle on/off, momentary talk and mute switching, and LED status (red/green) indicators. Optimized for speech, the M63 employs the Micros™ series technology for superior audio quality and performance. The M63 is also the industry’s only programmable boundary microphone with a patented internal shock-mount suspension system to reduce noise caused by touch and surface vibrations.
The M63 uses an internal microprocessor programmed to provide common DSP functions at a fraction of the cost of a typical DSP solution. Only the microphone connection (A+, A- and ground) is required for full functionality when set to internal logic. Phantom power is required (No other power supply is needed). For installations not requiring elaborate DSP programming, the M63 provides an easy-to-operate solution without the cost and labor required for DSP operation.
FEATURES
Sleek, modern design
Programmable (red/green) LEDs for active/ mute status
Industry-first internal shockmount
Programmable toggle on, toggle off, momentary talk and momentary mute button modes
Ergonomic flush-mount button
Optimized for speech clarity
High sensitivity and signal-to-noise
Immunity from RF interference
Slide-resistant rubber base
Manufactured in the USA with US and foreign components
3-year warranty
Transducer Type | Condenser |
Frequency Response | 50 Hz – 15 kHz |
Polar Pattern | Cardioid or Omni |
Output Impedance | 150 ohms |
Sensitivity | 52 mV / Pa @ 1k |
Equivalent Noise Level | 72 dB |
Signal to Noise Ratio | 22 dB |
Maximum SPL | ≥124 dB |
Dynamic Range | 102 dB |
Power Requirements | 48V phantom |
Connector | Two 3-pin terminal block connectors |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
Materials / Finish | Zinc alloy / black |
Weight | 350 g / 12.3 oz |
Width | 81 mm / 3.25 in |
Length | 103 mm / 4 in |
1X M63 Microphone
2X mating 3-pin terminal block connectors
1XDrill template
Mounting screws
M63 – Low profile condenser boundary microphone with programmable toggle on, toggle off.
M63B – As above, except cable exits the bottom of the unit (cable passes through mounting surface).
M63OMNI – Omnidirectional polar pattern; cable exits the rear of the unit.
M63OMNIB – As above, escept cable exits the bottom of the unit.
