Boundary Condenser Microphone With Integrated Circuitry

Designed, machined, assembled, and tested by Audix in the USA, the M60 is a miniaturized condenser microphone with fully integrated electronics and immunity from RF interference typically caused by cell phones and GSM devices.

Primary applications for the M60 are podium, corporate board rooms, meetings, and video conferencing where aesthetics and audio quality are of prime importance. The microphone element is cardioid by design; however, a “hemi-cardioid” polar pattern is produced when coupled with a flat surface such as a table, floor, wall, or podium.

The striking design of the M60 brass housing is achieved through an intricate process utilizing a computer-controlled machining center. The bottom of the housing is treated with a shock-absorbent material for dampening purposes and has two threaded holes that allow the M60 boundary condenser microphone to be bolted into a permanent position if desired.

A high-quality 12’ shielded mic cable is attached directly to the internal circuitry of the M60 with the ability to exit the housing at either 180 or 90 degrees, depending on whether the cable will be routed through a drilled surface. In addition, there are two types of connectors offered: XLRm or Phoenix.

Available in satin nickel or black finish, the M60 operates on 18 – 52 V phantom power.

Where To Buy M60 – Boundary Condenser Microphone With Integrated Circuitry
Transducer Type Condenser
Frequency Response 70 Hz – 8 kHz
Polar Pattern Hemi Cardioid
Output Impedance 150 ohms
Sensitivity 68 mV / Pa @ 1k
Equivalent Noise Level 22 dB (A-weighted)
Signal to Noise Ratio 72 dB
Maximum SPL ≥130 dB
Dynamic Range 108 dB
Power Requirements 18-52 V phantom
Connector 3-pin XLRm
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Brass/ Black, Nickel Finish
Weight 232 g / 8.3 oz
Length 63 mm / 2.48 in
Download Spec Sheet

1x M60 Boundary Condenser Microphone

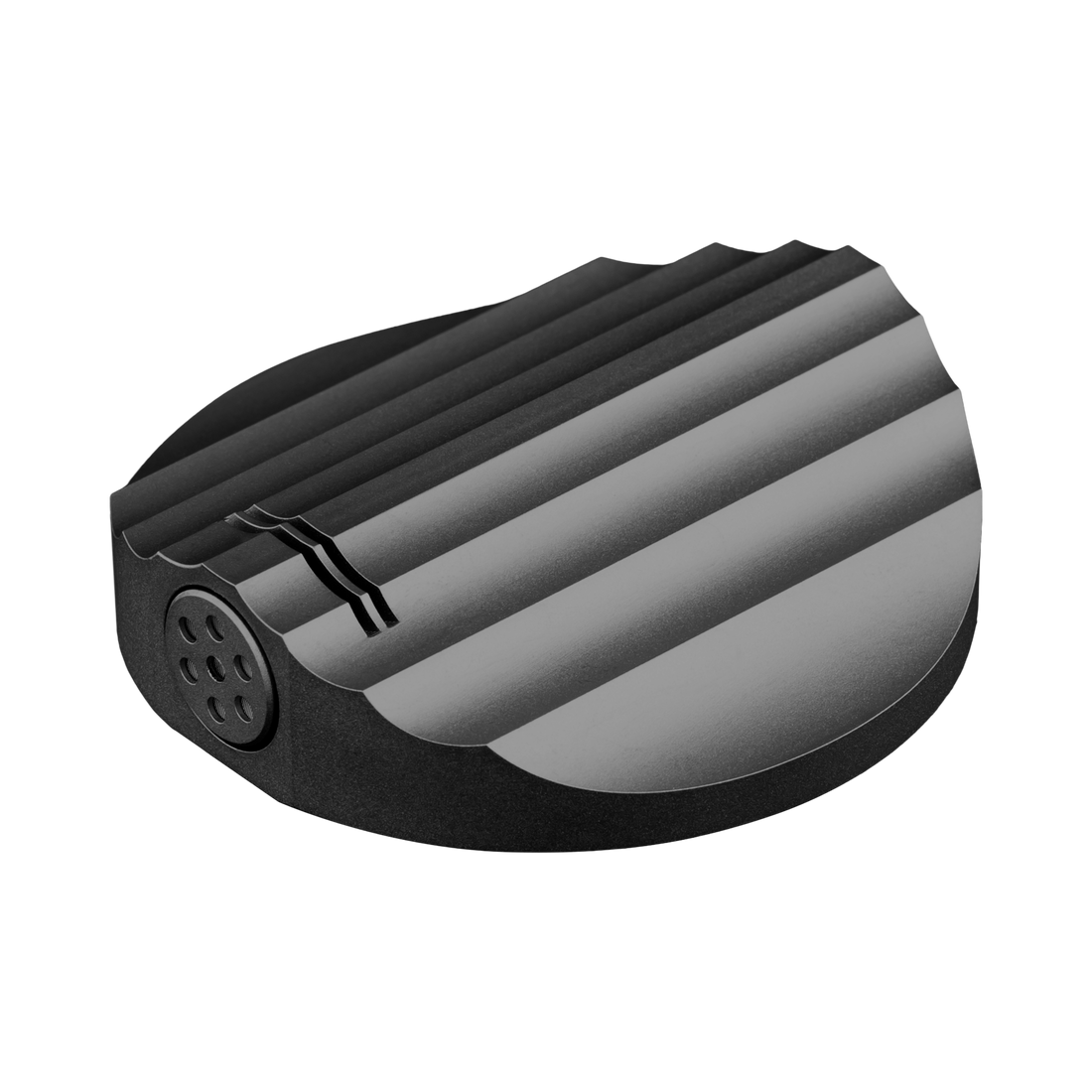

  • M60 – Low profile hemicardioid boundary microphone with fully integrated high-gain circuitry. Optimized for voice. Requires 18 – 52 V phantom power. 12′ cable with XLRf connector. Black.
  • M60P –  As above with phoenix connectors. Black.

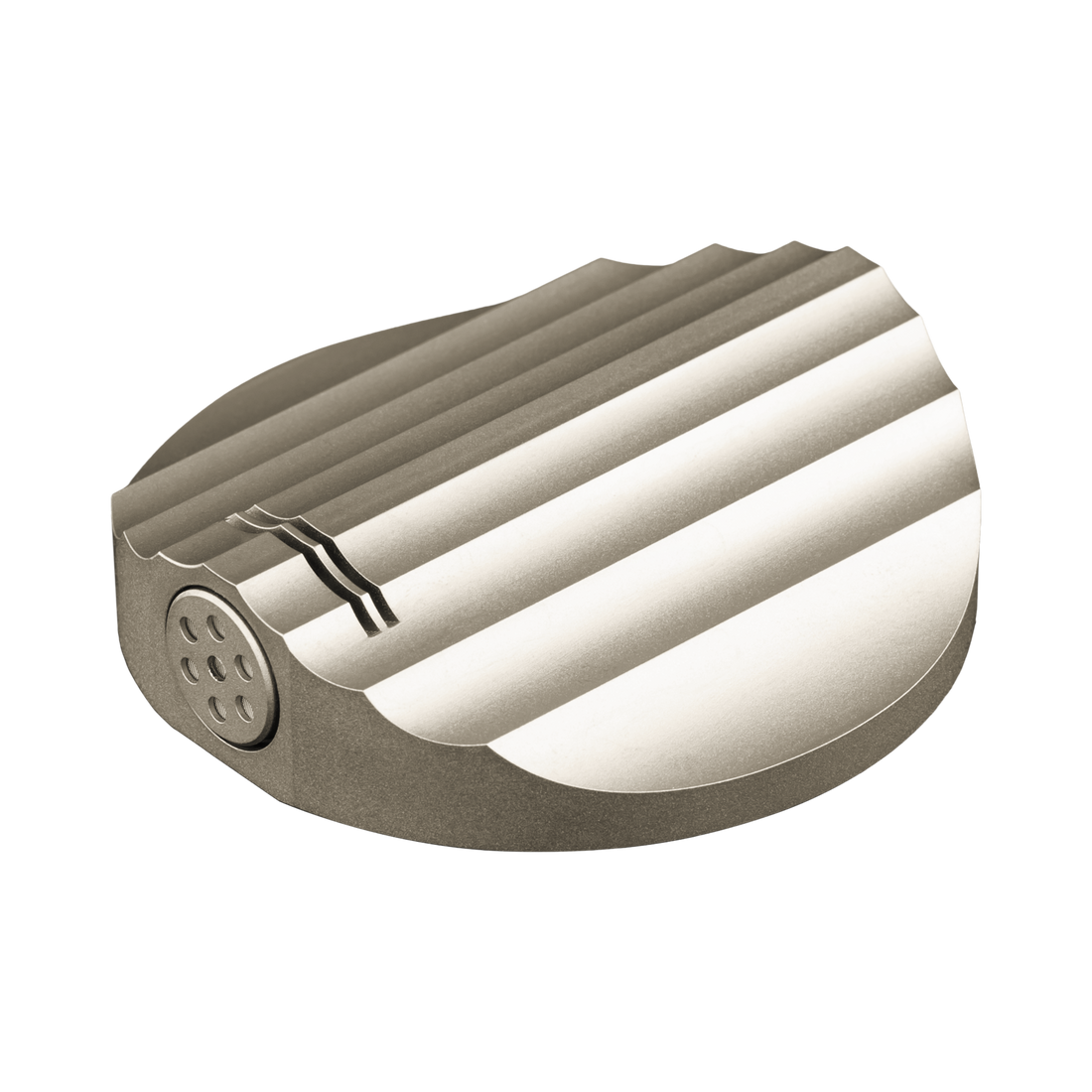

  • M60N – As above with XLRf connector. Nickel.
  • M60NP – As above with phoenix connectors. Nickel.
