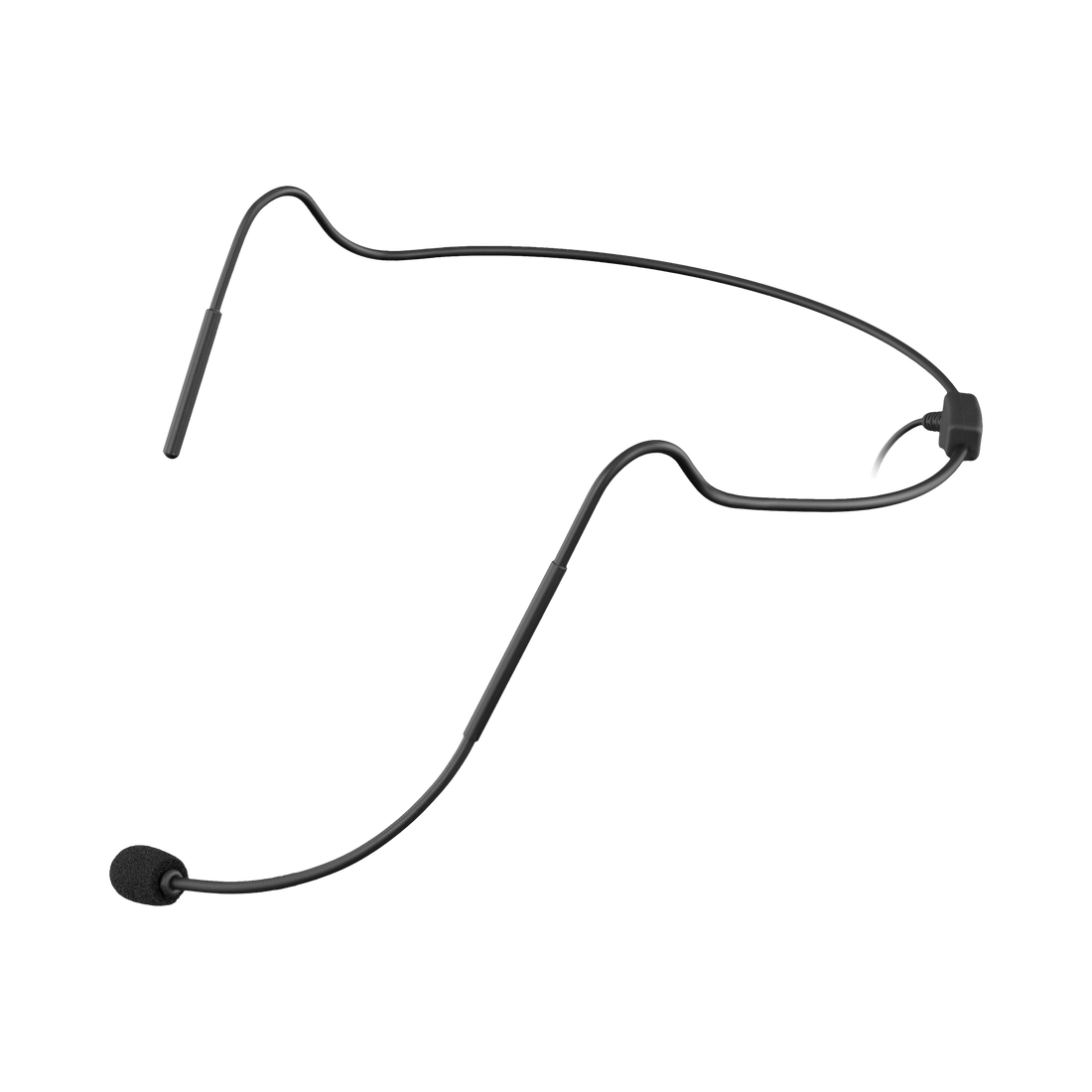

HT5

Lightweight, Dual Ear Wireless Condenser Headworn Vocal Mic for Presentation

The HT5 condenser vocal microphone has a uniformly controlled omnidirectional polar pattern and is designed to capture vocals from a comfortable distance of 2″-3″ off-axis. With a wide frequency range of 20 Hz – 20 kHz, this mic will handle high SPLs of ≥140 dB without distortion. The HT5 headset condenser microphone has excellent sonic characteristics, intelligibility, and high sensitivity.

The HT5 is easy to position, lightweight, and manufactured with very tight tolerances. The HT5 omnidirectional condenser microphone is designed with a high-performance 5 mm capsule as well as a 3′ high-quality cable terminating in a mini XLRf connector.

Where To Buy
  • Specifications
  • What’s in the Box?
  • Model Options and Variations
Transducer Type Pre-Polarized Condenser
Frequency Response 20 Hz – 20 kHz
Polar Pattern Omni-directional
Output Impedance 1000 ohms
Sensitivity 12 mV / Pa @ 1k
Equivalent Noise Level 26 dB (A weighted)
Signal to Noise Ratio 68 dB
Maximum SPL ≥140 dB
Power Requirements 5 – 52 V phantom
Connector 3-pin or 4pin XLRf
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish Flexible Steel Alloy / Black Finish
Weight 31 g / 1.1 oz
Download Spec Sheet

1x HT5 Vocal Microphone
1x 3′ integrated microphone cable with mini 3-pin XLRf connector
1x Windscreen external foam windscreen

  • HT5 – Low profile head-worn omnidirectional microphone with exceptional fidelity that is ideal for high-quality presentations live or on-air, 3′ cable 3-pin mini-XLRf. Black.
  • HT5BG – As above. Beige.
  • HT54PIN – As HT5 above except with 4-pin mini-XLRf connector. Black.
  • HT5BG4PIN – As above. Beige.
