GS1
Flush-Mount Wall / Ceiling Microphone

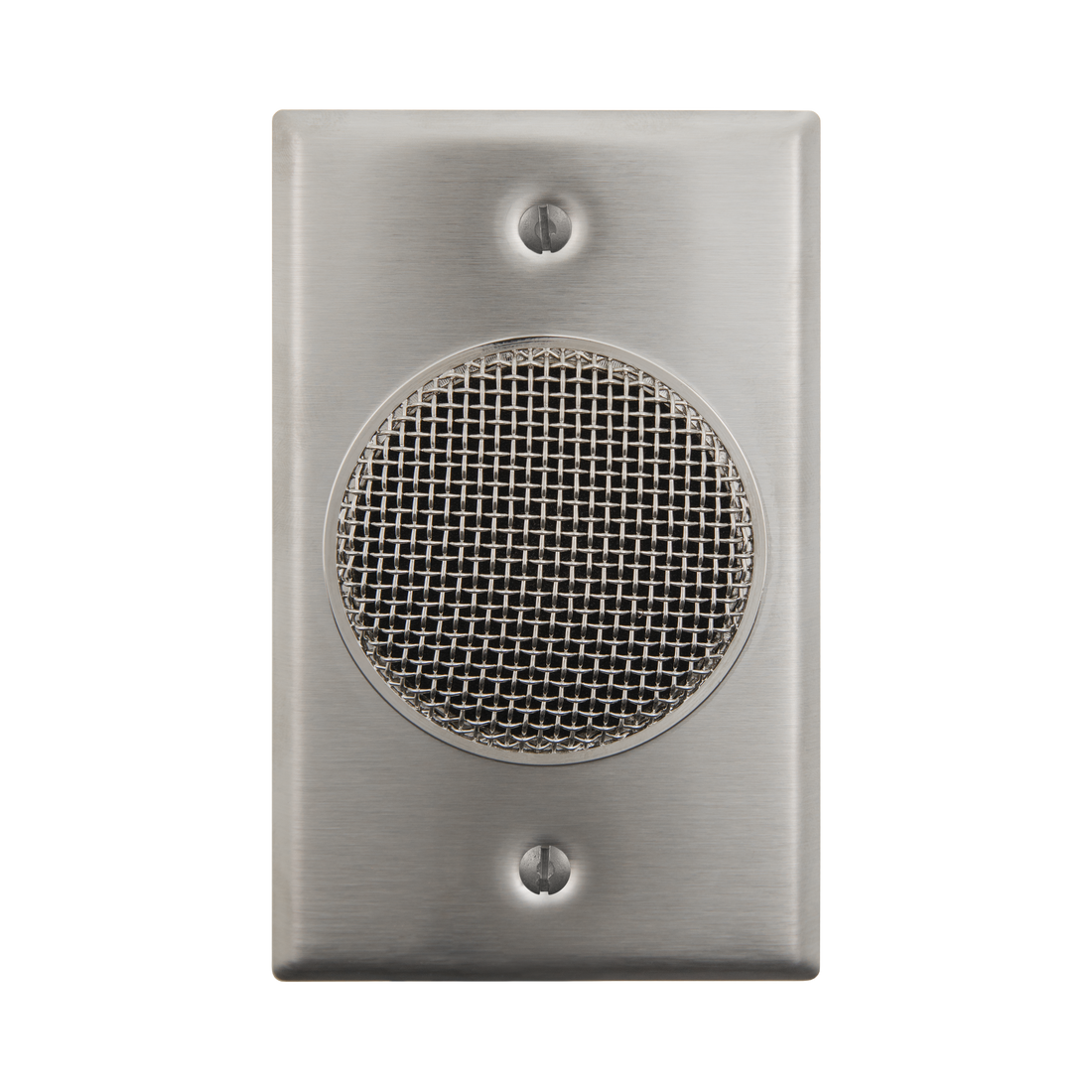

The GS1 is an innovative flush-mount wall or ceiling microphone designed for distance miking. Features include a fully integrated preamp, an extremely high sensitivity rating of 38 millivolts, and complete immunity from RF interference caused by cell phones and GSM devices.
The GS1 capsule is housed within a patented cradle that enables the microphone to be aimed up to an angle of 45 degrees towards the sound source. Its small footprint and flush-mount configuration allow the microphone to be unobtrusive without sacrificing sound quality.

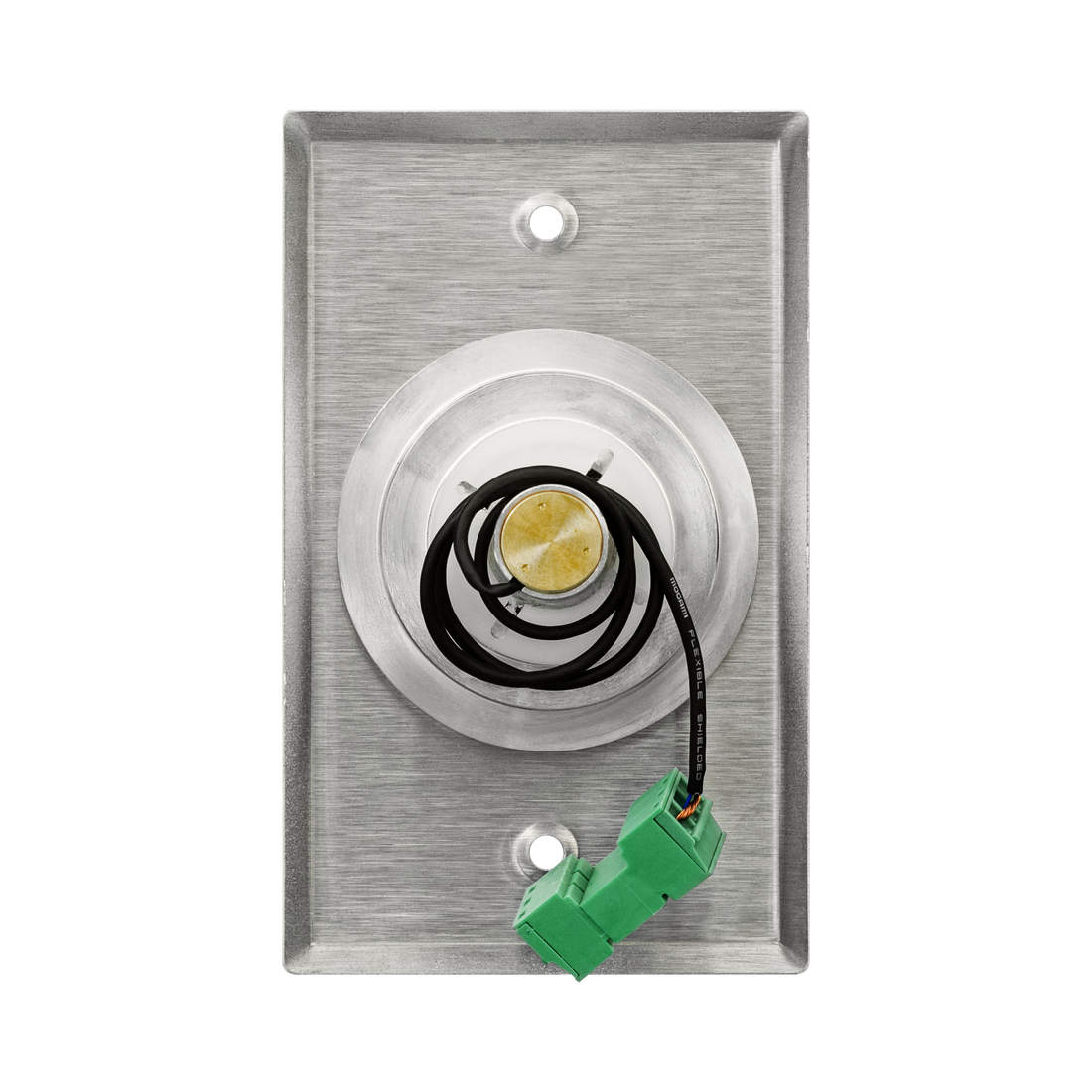

The GS1 terminates in a terminal block connector and is easy to install into a standard single gang box. A 2.75″ by 4.5″ mounting plate is included. The GS1 comes in a stock satin nickel finish and is also available in white.
FEATURES
- High output for distance miking
- Immunity from RF interference
- Miniaturized integrated preamp circuitry
- Includes x 2.75″ by 4.5″ metal mounting plate · No external power adapter
- Point and shoot directivity
- Designed, assembled & tested in the USA
- 3-year warranty
| Transducer Type | Condenser |
|---|---|
| Frequency Response | 60 Hz – 10 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | 150 ohms |
| Sensitivity | 38 mV / Pascal @ 1k |
| Equivalent Noise Level | 22 dB |
| Signal to Noise Ratio | 72 dB |
| Maximum SPL | ≥130 dB |
| Dynamic Range | 108 dB |
| Power Requirements | 18 – 52 V phantom |
| Connector | 3-pin Phoenix fe |
| Polarity | Positive pressure on diaphragm produces positive voltage on blue (center) Phoenix conductor |
| Materials / Finish | Brass aluminum and steel White or Nickel |
| Weight | Belden 9451 P or 82761 |
| Length | 176 mm / 6.9 in |
1x GS1 wall/ceiling microphone
1x 1-ft integrated mic cable terminating with a 3-pin terminal block
1x Mounting plate and attachment screws
- GS1 – Flush mount wall microphone. Requires 18 – 52 V phantom power. Nickel. Can be a hard mount model for M70N.

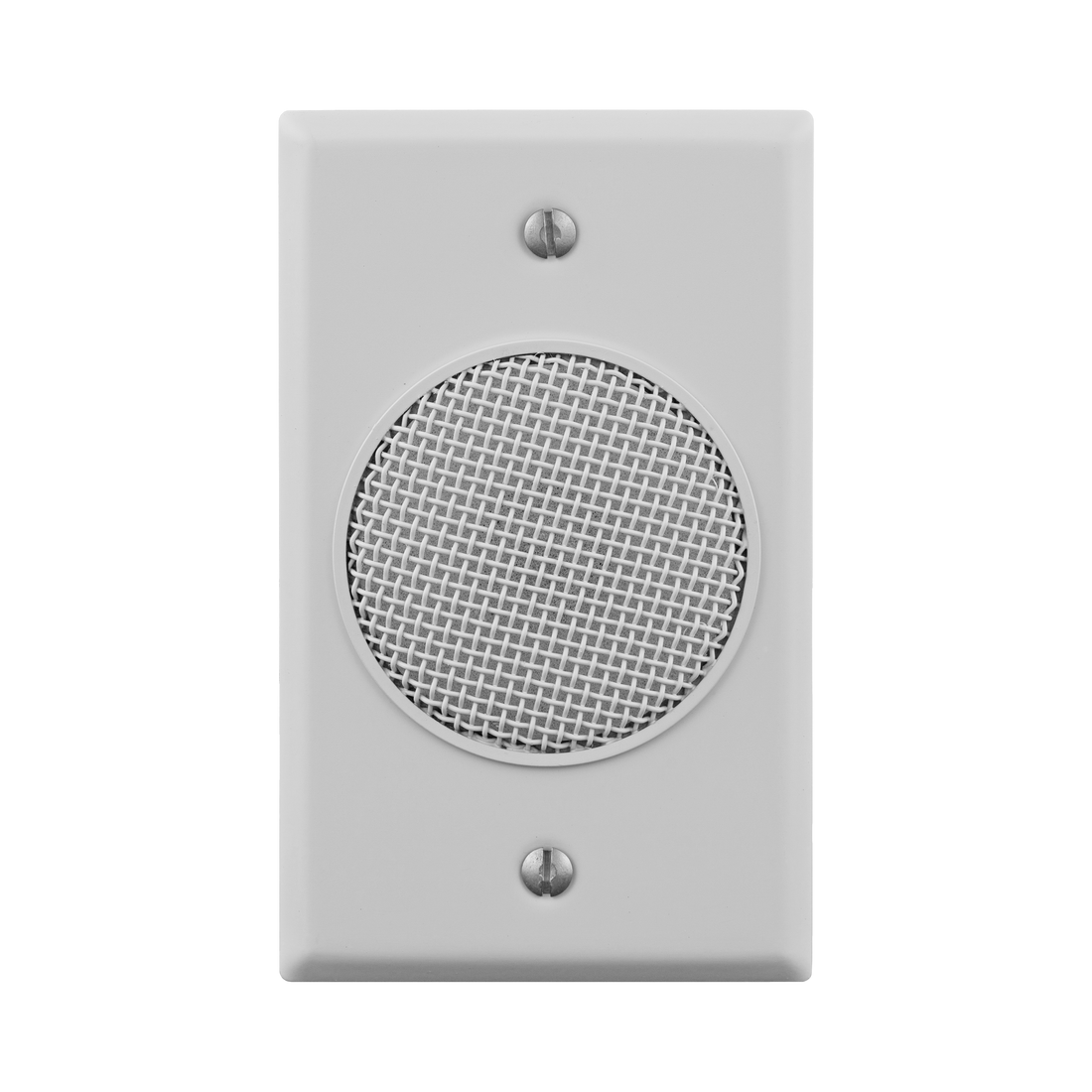

- GS1W – As above, white. Can be a hard mount model for M70W.
