f9

All-purpose Pencil Condenser Microphone

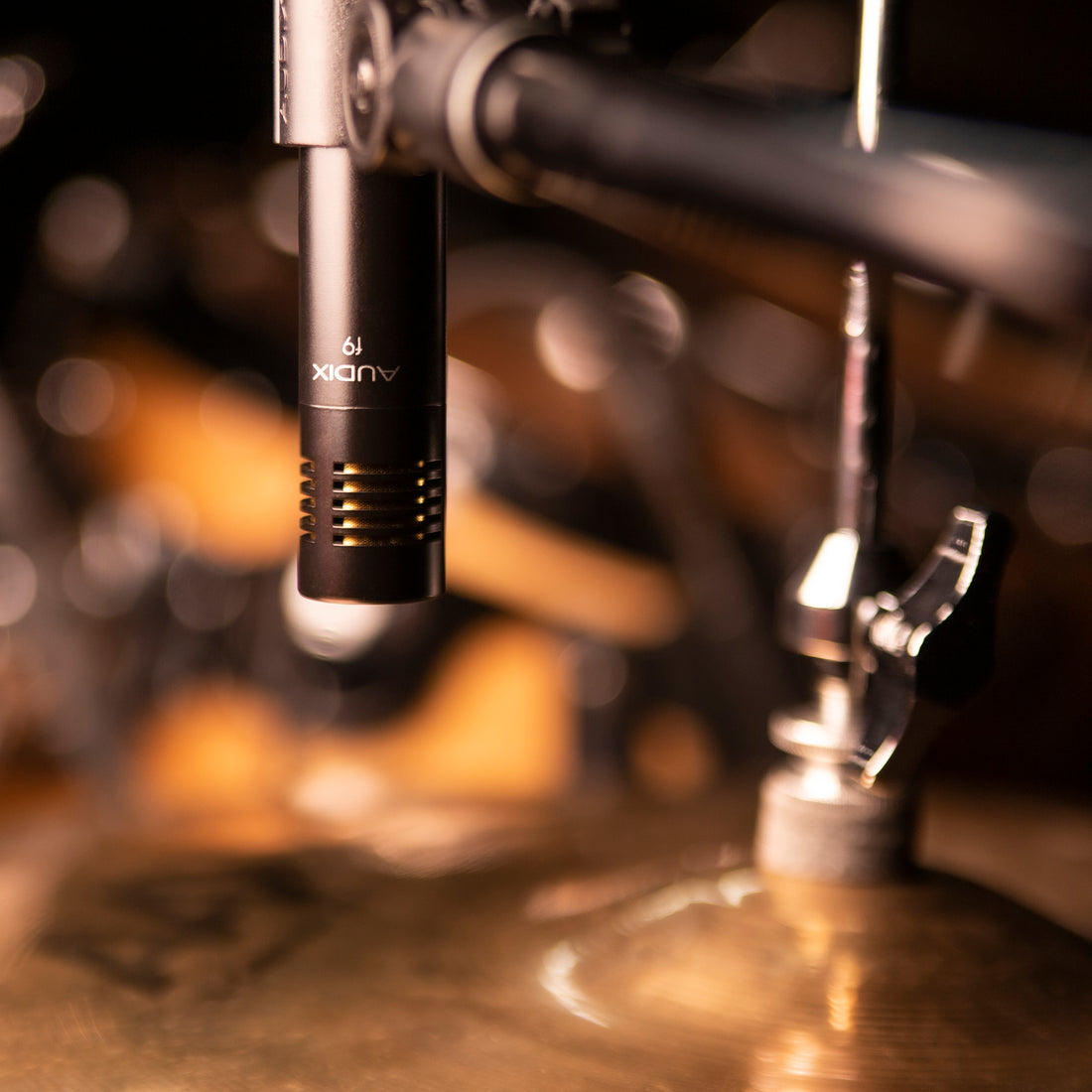

This f9 all-purpose pencil condenser microphone is suited for instruments requiring detailed reproduction in mid-high and extended high-end frequency ranges in live and studio applications. A wide cardioid pick-up pattern paired with high sensitivity allows close, overhead, and distance miking.

With its low impedance and balanced output, the f9 instrument condenser microphone has an interference-free performance. This microphone operates on phantom power of 12-48 V.

163
Where To Buy
  • Specifications
  • What’s in the Box?
Transducer Type Pre-Polarized Condenser
Frequency Response 40 Hz – 20 kHz
Polar Pattern Cardioid
Output Impedance 200 ohms
Sensitivity 8 mV / Pa @ 1k
Capsule Technology Gold Vapor Deposition
Equivalent Noise Level 25 dB (A-weighted)
Signal to Noise Ratio 69 dB
Off-Axis Rejection >24 dB
Maximum SPL ≥137 dB
Power Requirements 12-48 V Phantom
Dynamic Range 112 dB
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Zinc Alloy / Black Finish
Weight 95 g / 3.3 oz
Length 111 mm / 4.37 in
Download Spec Sheet

1 x f9 Instrument Microphone
1 x DCLIP Microphone Clip
1 x P1 Carrying Pouch
