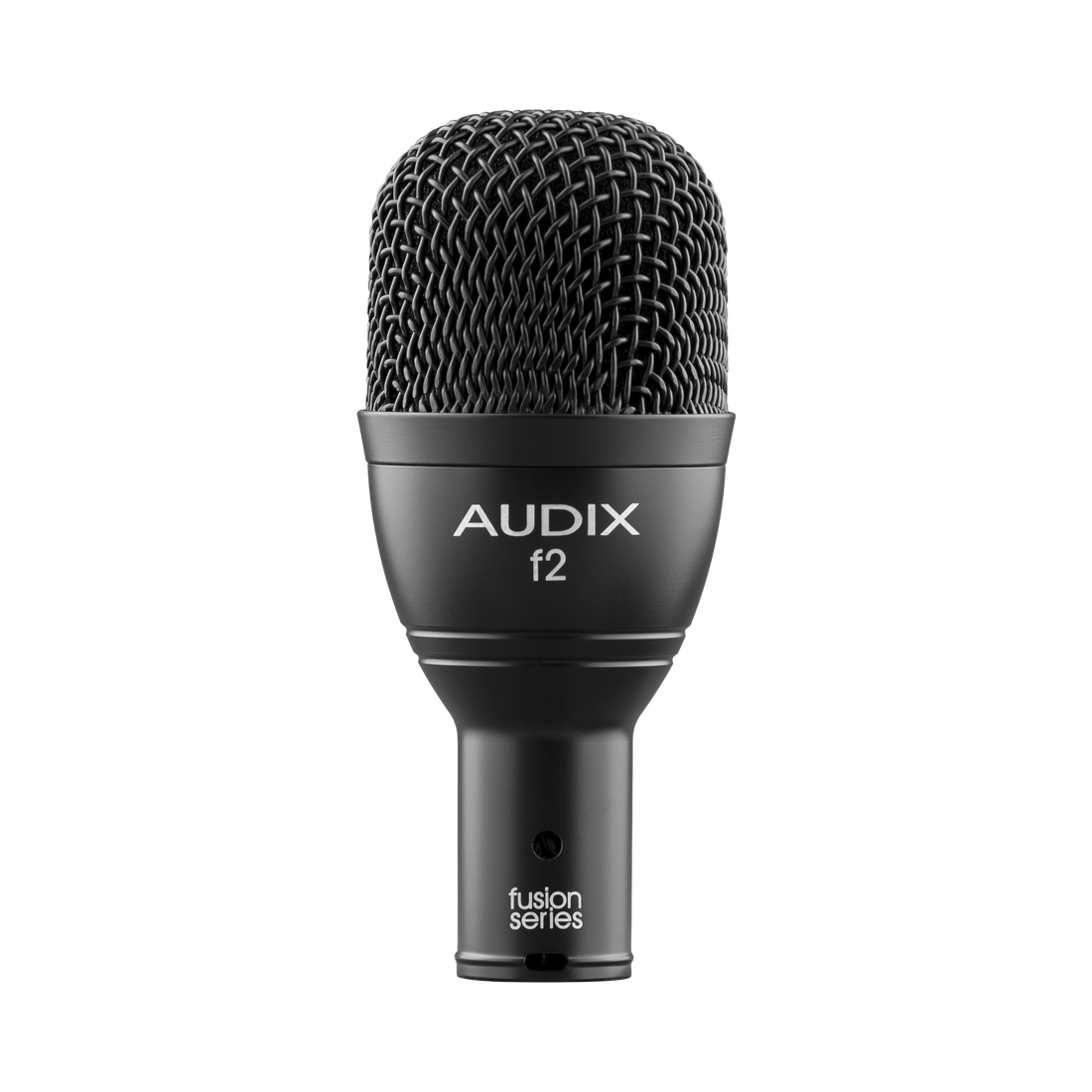

Affordable Dynamic Instrument Microphone

The Fusion Series are high-performance microphones in a cost-effective package.

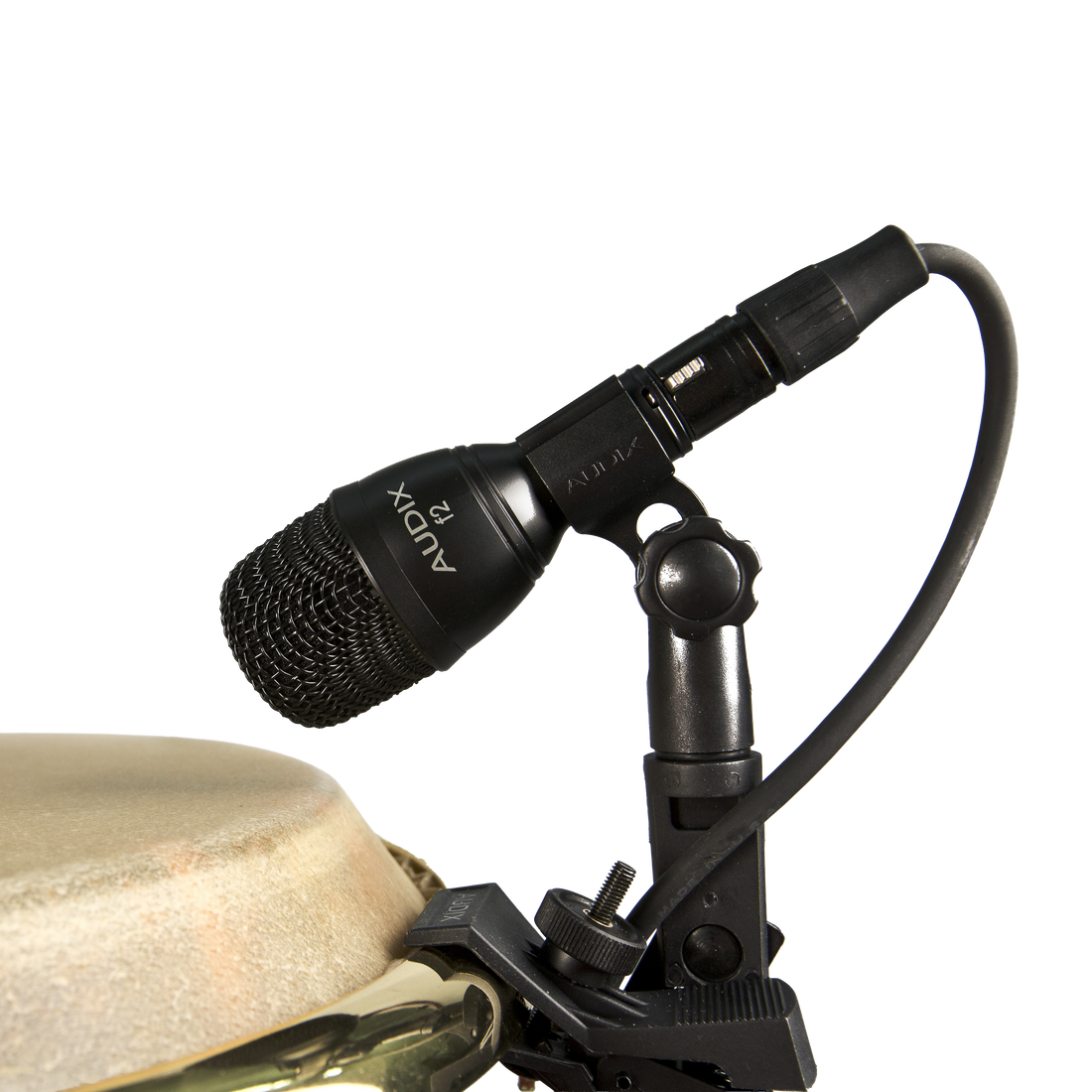

The f2 dynamic instrument microphone is best used for miking instruments requiring mid-bass and mid-high reproduction in live and studio applications. Its hypercardioid pick-up pattern helps to minimize feedback and isolate the instrument from ambient sound coming from the room or other instruments on stage.

Low impedance and balanced output on the f2 allow interference-free performance. Compact and durable, the f2 hypercardioid instrument microphone features a cast zinc alloy body, steel mesh grille and gold plated XLR connector.

Designed, assembled, and tested by Audix in the USA.

Where To Buy
  • Specifications
  • What’s in the Box?
Transducer Type Dynamic
Frequency Response 52 Hz – 15 kHz
Polar Pattern Hypercardioid
Output Impedance 580 ohms
Sensitivity 2 mV / Pa @ 1k
Capsule Technology LM Type A
Off-Axis Rejection >20 dB
Maximum SPL ≥139 dB
Power Requirements None
Connector 3-pin XLRm
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Zinc Alloy / Black Finish
Weight 247 g / 8 oz
Length 104 mm / 4.09 in
Download Spec Sheet

1x f2 Instrument Microphone
1x DCLIP Microphone Clip
1x P1 Carrying Pouch
