DN43

Dante | AES67 Microphone Interface for the Dante

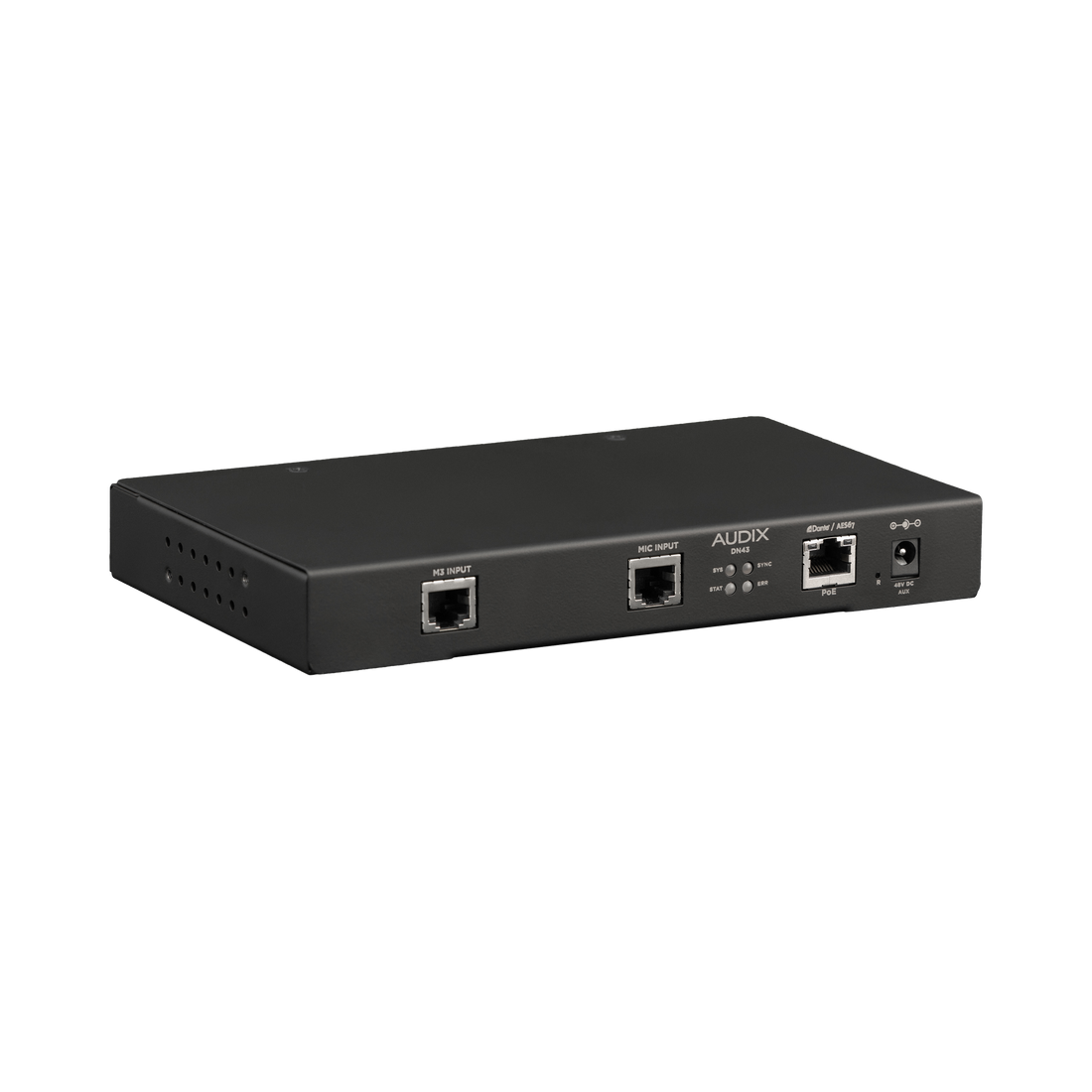

The DN43 microphone interface is a key part of the Audix Dante | AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions – including on-off contact closure and LED status indicators – are available through a single CAT5 – CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost.

The DN43 features one microphone input specifically designed for the Audix M3 tri-element microphone and one input for Audix RJ45-equipped, single-element microphones. It has two 5V logic outputs per port, with source/sink capability for LEDs that are controlled by network-connected DSPs. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable via software.

Designed, assembled, and tested by Audix in the USA.

AUDIO FEATURES

  • High-fidelity 24-bit, 48kHz audio
  • Balanced audio inputs with RFI filtering
  • 48V phantom power output
  • Each channel has selectable pre-amp gain, as well as low and high-pass filters
  • All channels controlled independently
  • Flash memory prevents loss of settings in the event of power loss
  • Compatible with the M3 tri-element microphone (DN43 only), the flush-mount,
    steerable M70WD ceiling microphone, and the M55WD ceiling microphone

DANTE FEATURES

  • Supports AES67 audio streams
  • Dante Domain Manager (DDM) ready
  • Dynamic or static IP address
  • Evaluated to the requirement of UL2043
    and is suitable for use in above-ceiling
    applications

POWER FEATURES

  • Operates on PoE from any IEEE 802.3af compliant equipment
Where To Buy
  • Specifications
  • What’s in the Box?
Mic Input Balanced, RFI filtered
Mic Input Connector Shielded 8P8C, RJ45
Phantom Power 48 VDC, 14 mA / port (short circuit protected)
Max Input (0 dB gain) 14 dBu, 155 mV
Input Impedance (balanced) 1.15 kΩ
Frequency Response 15 Hz – 22 kHz, +0, -3 dB
THD+N (1 kHz, 0 dB gain) 0.003 %
CMRR (typ.) 50 dB
EIN (typ., unweighted) -120 dBu
SNR (typ., unweighted) -96 dB
Channel Crosstalk (1 kHz) < -80 dB
Dante™ / AES67 Channels 4
Dante™ Chipset UXT-01-004
Sample Rate 48 kHz
Word Width 24-bit
Logic Inputs Per Port 1 per single-element microphone port
Logic Outputs Per Port 2
Low-pass Options s Off, 5 kHz, 7 kHz, 10 kHz
High-pass Options 15 Hz, 238 Hz
Gain Options 0 dB, +8 dB, +12 dB, +15 dB,+18 dB, +24 dB, 30 dB, +36 dB
Power External DC Jack PoE (IEEE 802.3af) +48VDC, 125 mA CLASS 2 (3.84 – 6.49 W)
Height 28 mm (1.11 in)
Width 202 mm (7.95 in)
Depth 125 mm (4.92 in)
Weight 0.63kg (1.31lbs)
Temperature 10-50 °C (50-122 °F)
Compliance FCC Part NN (USA) CE marked (Europe) RoHS WEEE Directive
Download Spec Sheet

1x DN43 microphone interface
1x Mounting brackets (pair MNTDN), with attachment screws
1x 1.56 mm / 0.063 inch seismic and fire cable restraint
