DN4
Enhanced Onramp for Dante | AES67

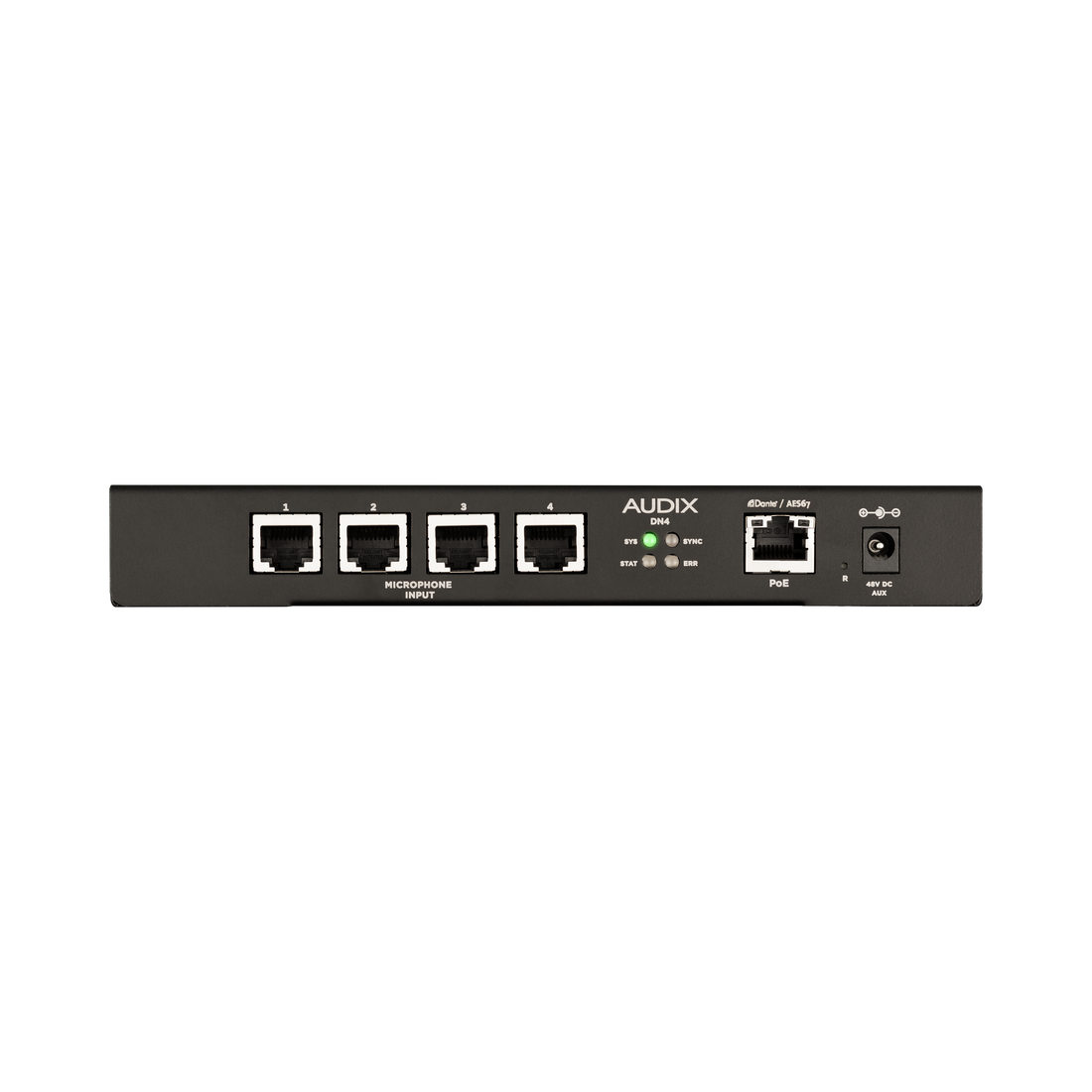

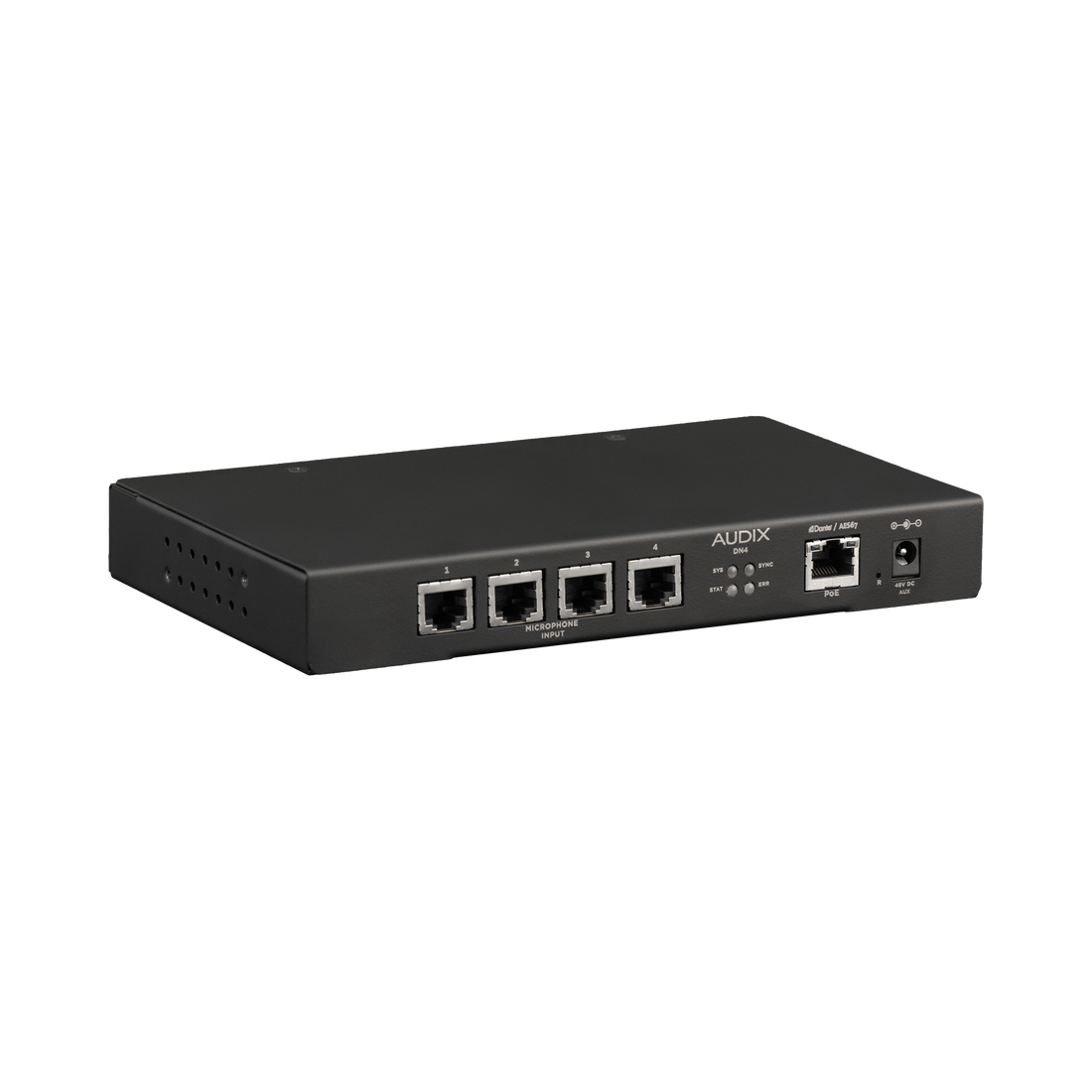

The DN4 is a 4-channel, analog-microphone-to-Dante (or AES67) interface featuring selectable pre-amp gain, low- and high-pass filters, and LED logic control.
The DN4 microphone interface is a key part of the Audix Dante | AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions – including on-off contact closure and LED status indicators – are available through a single CAT5 – CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost.
The DN4 features four inputs for Audix RJ45-equipped, single-element microphones and two 5V logic outputs per port, with source/sink capability for LEDs that are controlled by network-connected DSPs and one logic input per port for buttons. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable via software.
Designed, assembled, and tested by Audix in the USA.
AUDIO FEATURES
- Compatible with all Audix RJ45-equipped, single-element, analog microphones
- High-fidelity 24-bit, 48kHz audio
- Balanced audio inputs with RFI filtering
- 48V phantom power output
- Each channel has eight selectable pre-amp gain levels, as well as low- and high-pass filters
- All channels controlled independently
- Flash memory prevents loss of settings in the event of power loss
DANTE FEATURES
- Supports AES67 audio streams
- Dante Domain Manager (DDM) ready
- Dynamic or static IP address
- Evaluated to the requirement of UL2043 and is suitable for use in above-ceiling applications
POWER FEATURES
- Operates on PoE from any IEEE 802.3af compliant equipment
| Mic Input | Balanced, RFI filtered |
|---|---|
| Mic Input Connector | Shielded 8P8C, RJ45 |
| Phantom Power | 48VDC, 14 mA / port (short circuit protected) |
| Max Input (0 dB gain) | -14 dBu, 155 mV |
| Input Impedance (balanced) | 1.15 kΩ |
| Frequency Response | 15 Hz – 22 kHz, +0, -3 dB |
| THD+N (1 kHz, 0 dB gain) | 0.003 % |
| CMMR (typ.) | 50 dB |
| EIN (typ., unweighted) | -120 dBu |
| SNR (typ., unweighted) | -96 dB |
| Channel Crosstalk (1 kHz) | < -80 dB |
| Dante™ / AES67 Channels | 4 |
| Dante™ Chipset | UXT-01-004 |
| Sample Rate | 48 kHz |
| Word Width | 24-bit |
| Logic Inputs Per Port | 1 per single-element microphone port |
| Logic Outputs Per Port | 2 |
| Low-pass Options | Off, 5 kHz, 7 kHz, 10 kHz |
| High-pass Options | 15 Hz, 238 Hz |
| Gain Options | 0 dB, +8 dB, +12 dB, +15 dB,+18 dB, +24 dB, 30 dB, +36 dB |
| Power External DC Jack PoE (IEEE 802.3af) | +48VDC, 125 mA CLASS 2 (3.84 – 6.49 W) |
| Height | 28 mm (1.11 in) |
| Width | 202 mm (7.95 in) |
| Depth | 125 mm (4.92 in) |
| Weight | 0.64kg (1.41 lbs) |
| Temperature | 10-50 °C (50-122 °F) |
| Compliance | FCC Part NN (USA) CE marked (Europe) RoHS WEEE Directive |
1x DN4 microphone interface
1x Mounting brackets (pair MNTDN), with attachment screws
1x 1.56 mm / 0.063 inch seismic and fire cable restraint
