D4

Professional Dynamic Instrument Microphone

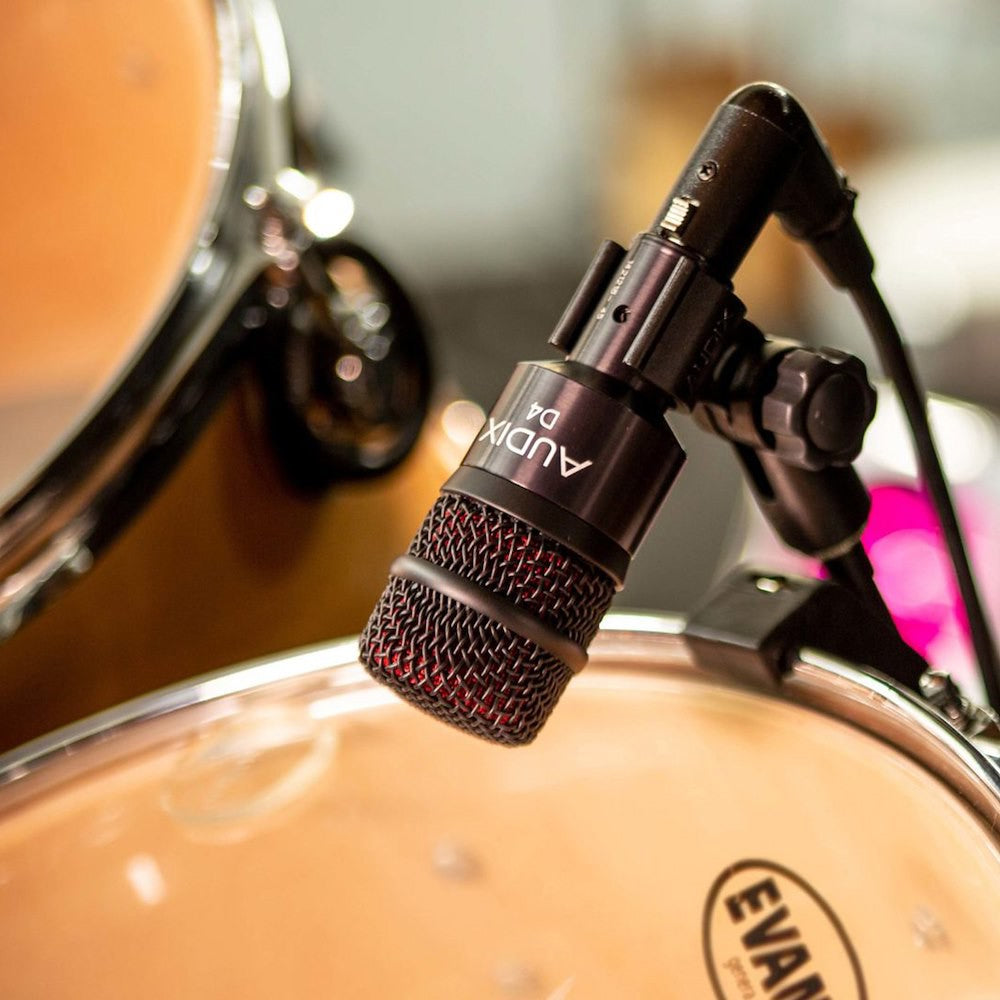

With a wide frequency response of 40 Hz – 18 kHz and the ability to handle SPLs in excess of 144 dB, the D4 dynamic instrument microphone is an excellent choice for miking instruments requiring precise, low-frequency reproduction such as large rack toms, floor toms, cajon, djembe, tympani, leslie bottom, bass flute, saxophone and baritone saxophone, trombone, acoustic bass, bass cabinets, and small kick drums.

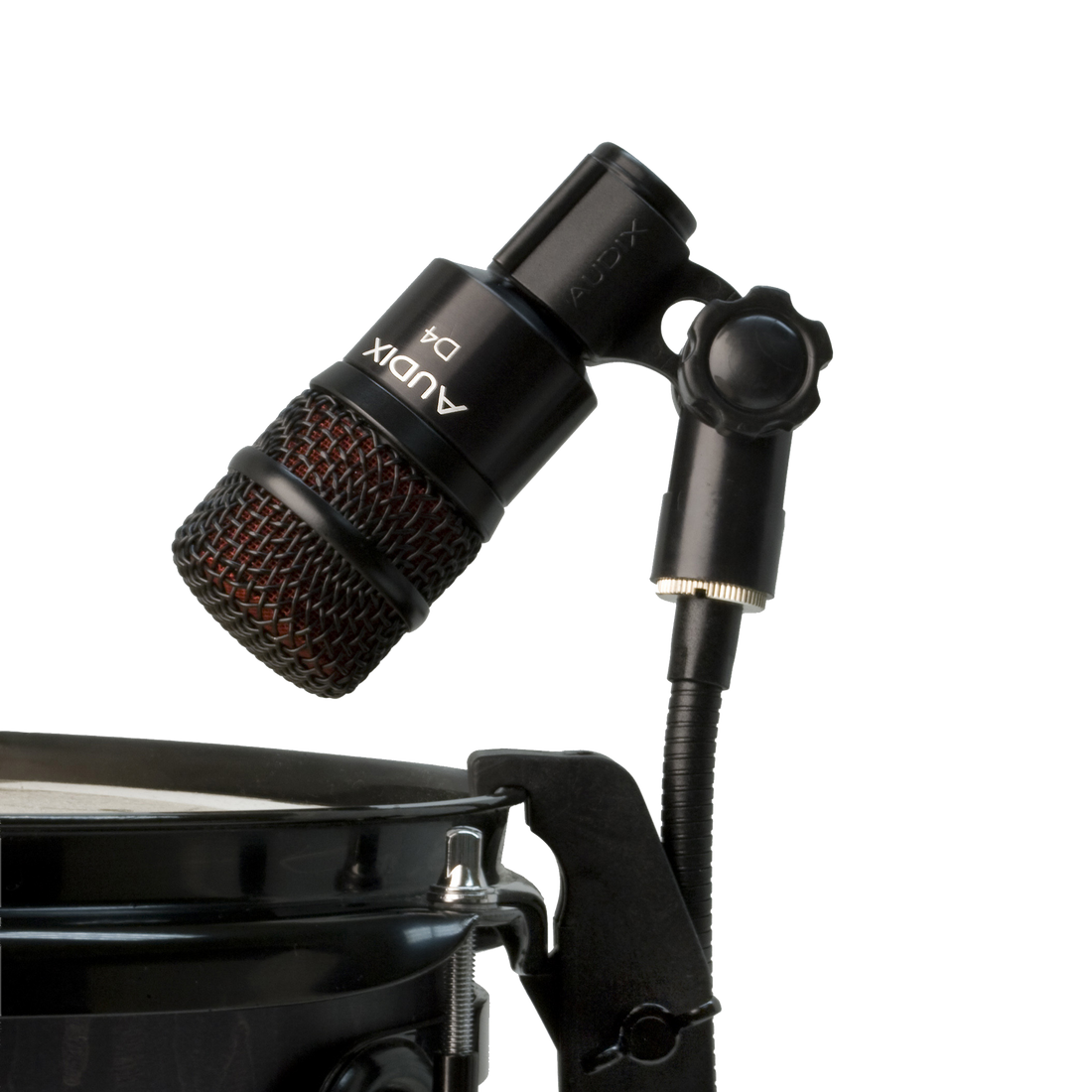

The D4 is lightweight, compact, and easy to position. Used for stage, studio, and broadcast applications, the D4 dynamic instrument microphone is designed with a hypercardioid pickup pattern for isolation and feedback control. The D4 hypercardioid is also equipped with a VLM™ diaphragm for natural accurate sound reproduction.

223
Where To Buy
  • Specifications
  • What’s in the Box?
  • Videos
Transducer Type Dynamic
Frequency Response 40 Hz – 18 kHz
Polar Pattern Hypercardioid
Output Impedance 280 ohms
Sensitivity 1.4 mV / Pa @ 1k
Capsule Technology VLM Type D
Off-Axis Rejection >20 dB
Maximum SPL ≥144 dB
Power Requirements None
Connector 3-pin XLRm
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Black Hard Coat
Weight 128 g / 4.5 oz
Length 100 mm / 3.9 in
Download Spec Sheet

1 x D4 Instrument Microphone
1 x DCLIP Microphone Clip
1 x P1 Carrying Pouch
