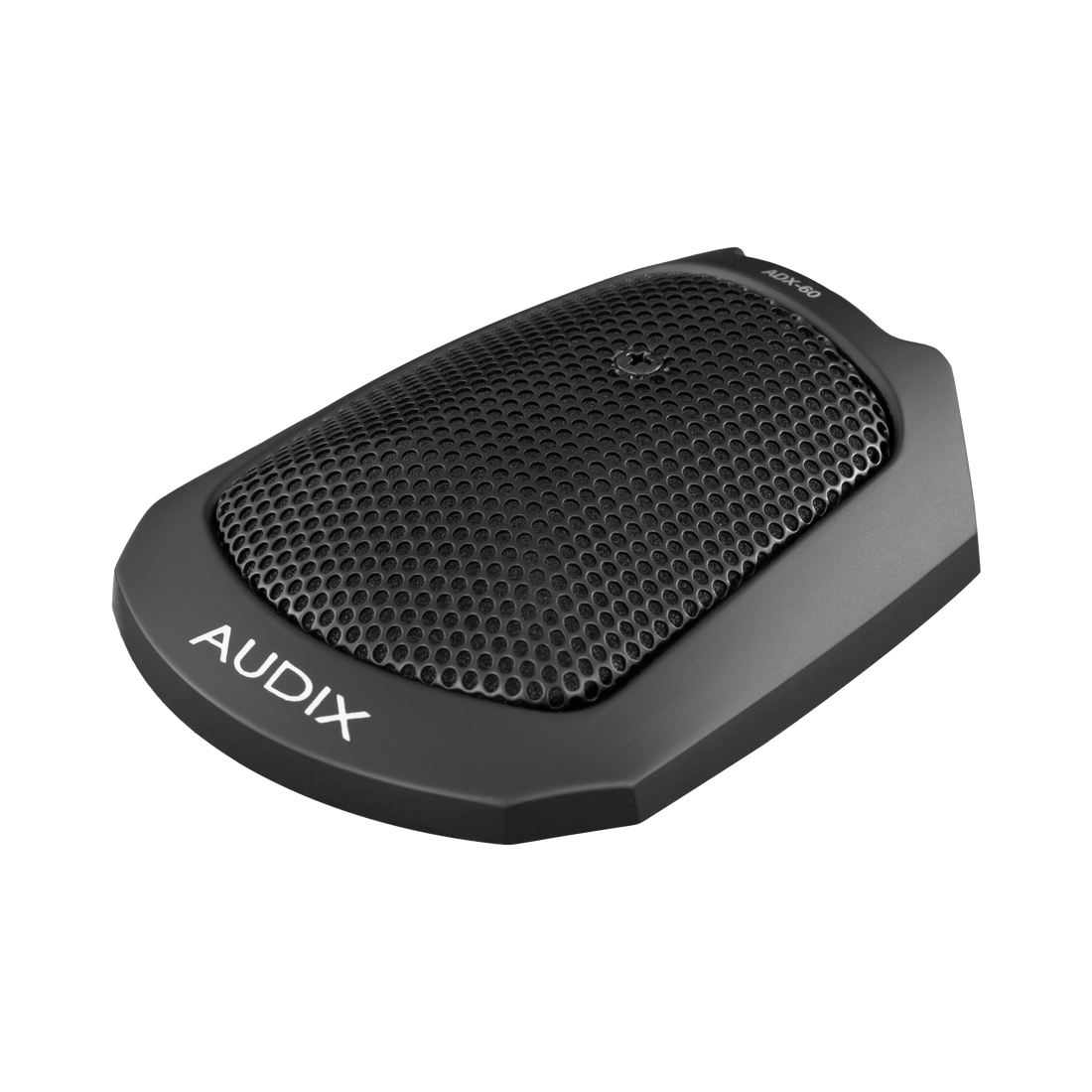

ADX60

Boundary Condenser Microphone

A professional pre-polarized condenser microphone, the ADX60 is designed for stage, studio, and broadcast applications. The ADX60 is highly sensitive and able to handle distance and area miking for various applications including conferences, plays, theatre, and acoustic instruments.

The ADX60 has a uniformly controlled hemicardioid polar pattern and is designed to capture a designated area. This microphone requires a 9 – 52 V phantom power for operation and is equipped with a 25′ cable and phantom power adapter.

The ADX60 boundary condenser microphone is easy to position, durable, and is manufactured with a high performance 12 mm capsule, steel mesh grille, and space-saving mini-XLR connector.

Where To Buy
  • Specifications
  • What’s in the Box?
  • Videos
Transducer Type Pre-Polarized Condenser
Frequency Response 50 Hz – 18 kHz
Polar Pattern Cardioid
Output Impedance 250 ohms balanced
Sensitivity 9 mV / Pa @ 1k
Equivalent Noise Level <29 dB (A-weighted)
Signal to Noise Ratio >65 dB
Maximum SPL ≥130 dB
Power Requirements None
Connector Miniature female XLR connector
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish Die Cast Zinc / Black Finish
Weight 143 g / 5 oz
Length 80 mm / 3.1 in
Download Spec Sheet

1 x ADX60 Condenser Microphone
1 x CBL60 25′ Detachable Microphone Cable With Mini XLRf Connectors
1 x APS910 Phantom Power Adapter
1 x P1 Carrying Pouch
