Miniaturized Condenser Flute Microphone

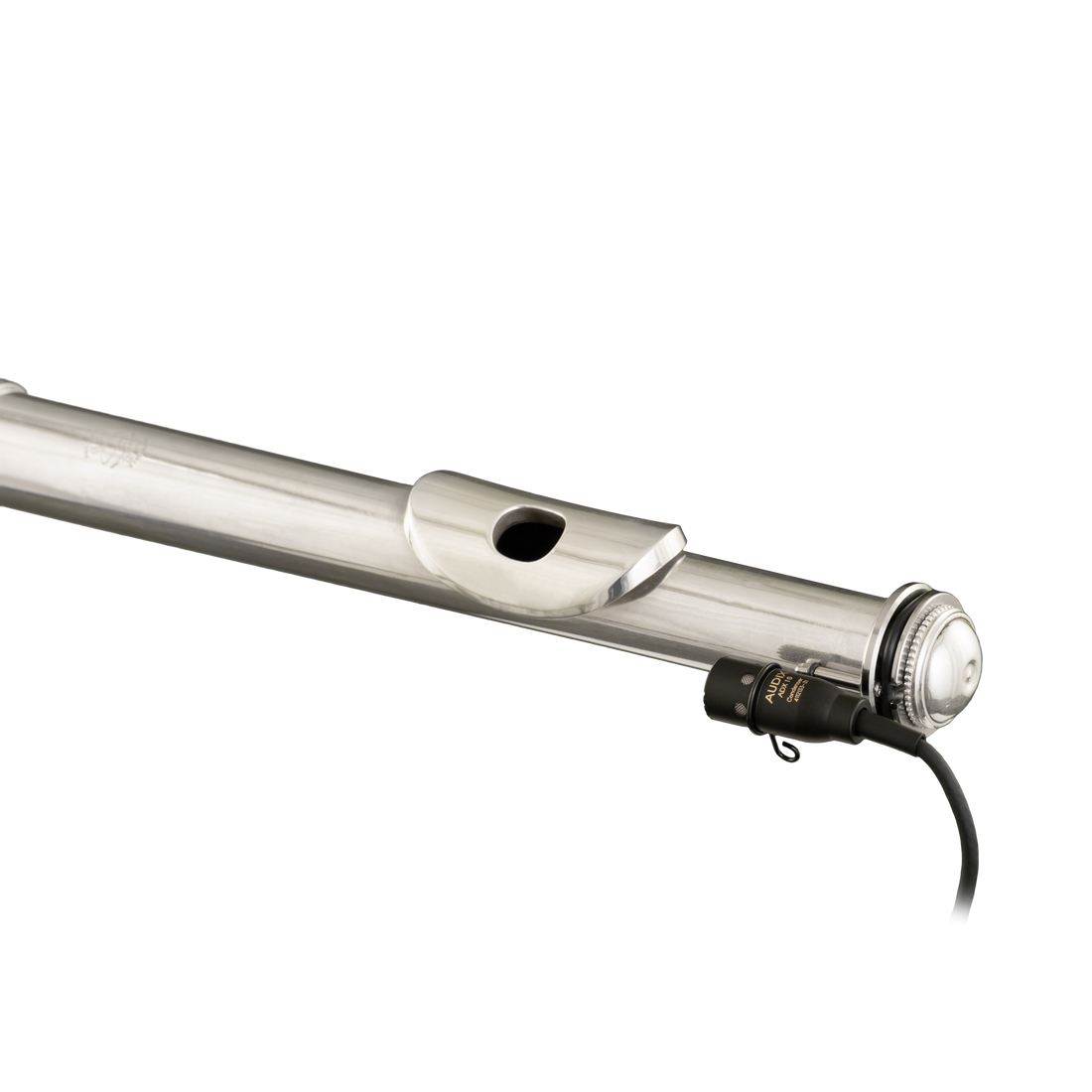

The ADX10FLP is a cardioid condenser flute microphone that utilizes a uniformly controlled cardioid polar pattern. This feature assists in isolating the miked sound at the embouchure hole from other instruments or vocals on stage. With a smooth and accurate frequency range of 50 Hz-18 kHz, the ADX10FLP is lightweight, low profile, and furnishes the flutist’s natural sound with an exceptional transient response.
The ADX10FLP, specifically for use with a standard flute, includes a clip (attaches to the head joint), an 8′ cable terminating to a mini XLR-f connector, and a phantom power adapter (APS911). Other model versions include the ADX10FL for use with Audix wireless systems.
Manufactured to high standards and tight tolerances, the ADX10FLP miniaturized condenser flute mic features a modular threaded capsule, machined brass body with a matte black finish, high quality shielded microphone cable and a variety of optional accessories.
|Transducer Type||Pre-polarized Condenser|
|Frequency Response||50 Hz – 18 kHz|
|Output Impedance||250 ohms|
|Sensitivity||4.5 mV / Pa @ 1k|
|Signal to Noise Ratio||>65 dB|
|Equivalent Noise Ratio||<29 dB (A-weighted)|
|Maximum SPL||≥120 dB|
|Power Requirements||5-52V phantom|
|Connector||Shielded 3’ terminating to a minature 3 pin XLRf|
|Polarity||Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3|
|Materials / Finish||Machined brass capsule / Black finish|
|Weight||110 g / 4 oz|
|Length||25 mm / 0.98 in|
1 x ADX10FLP Instrument Microphone
1 x MCFLUTE Microphone Clip
1 x WS10 External Windscreen
1 x P1 Carrying Pouch
1 x APS911 Phantom Power Adapter
