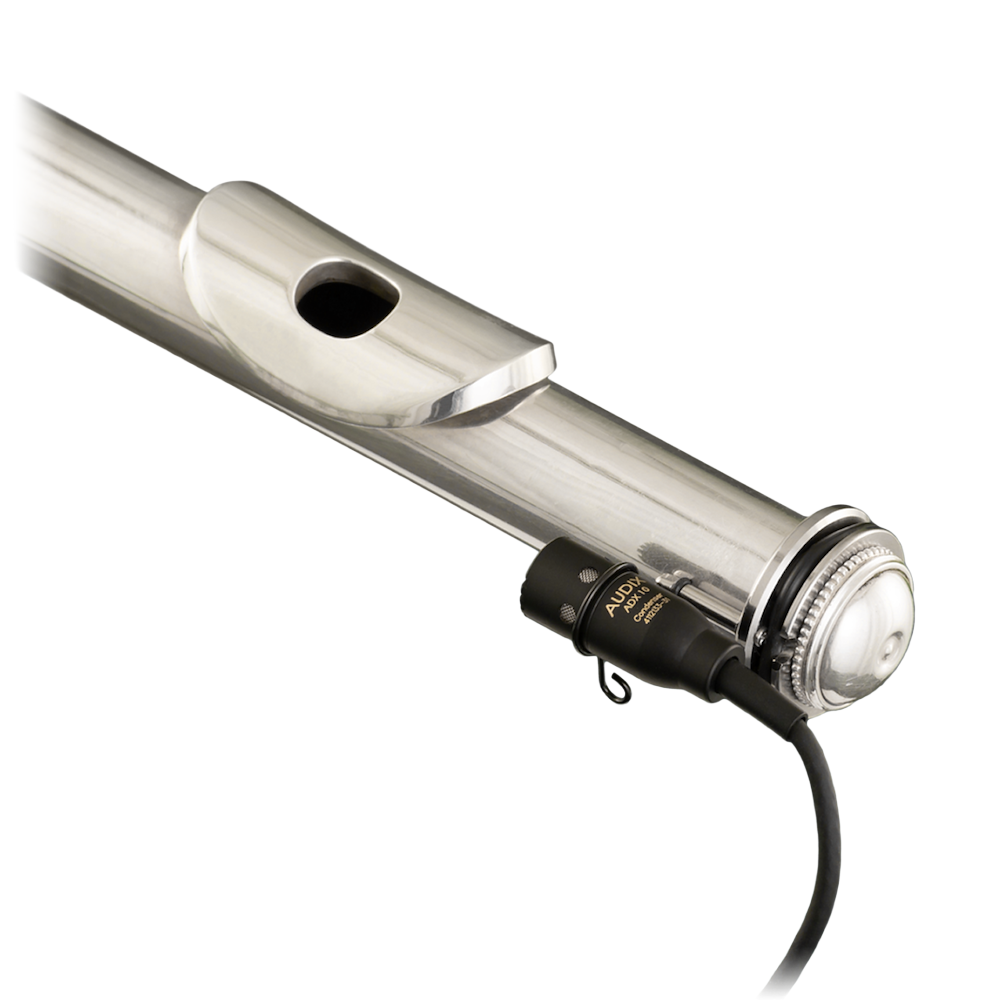

ADX10FL
Wireless Miniaturized Condenser Flute Microphone
The ADX10FL is characterized by a uniformly controlled cardioid polar pattern, helping to isolate the area or section being miked from other instruments or vocals on stage. With a smooth and accurate frequency range of 50 Hz – 18 kHz, the ADX10FL is lightweight, low profile, and will provide natural sound with an exceptional transient response.
The ADX10FL cardioid condenser microphone works with the Audix wireless systems specifically for use with a flute, includes a clip that attaches to the headstock of a flute, an 8’ cable terminating to a miniXLRf connector.
Manufactured to high standards and tight tolerances, the ADX10FL miniaturized condenser flute microphone features a modular threaded capsule, machined brass body with a matte black finish, high-quality shielded microphone cable, and a variety of optional accessories.
Designed, assembled, and tested by Audix in the USA.
| Transducer Type | Pre-Polarized Condenser |
|---|---|
| Frequency Response | 50 Hz – 18 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | 250 ohms |
| Sensitivity | 4.5 mV / Pa @ 1k |
| Equivalent Noise Level | <29 dB (A-weighted) |
| Signal to Noise Ratio | >65 dB |
| Maximum SPL | ≥120 dB |
| Power Requirements | 5-52 V phantom |
| Connector | Shielded 3’ terminating to a minature 3 pin XLRf |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 |
| Materials / Finish | Machined Brass Capsule / Black Finish |
| Weight | 110 g / 4 oz |
| Length | 25 mm / 0.98 in |
1x ADX10FL Instrument Microphone
1x MCFLUTE Microphone Clip
1x WS10 External Windscreen
1x P1 Carrying Pouch
