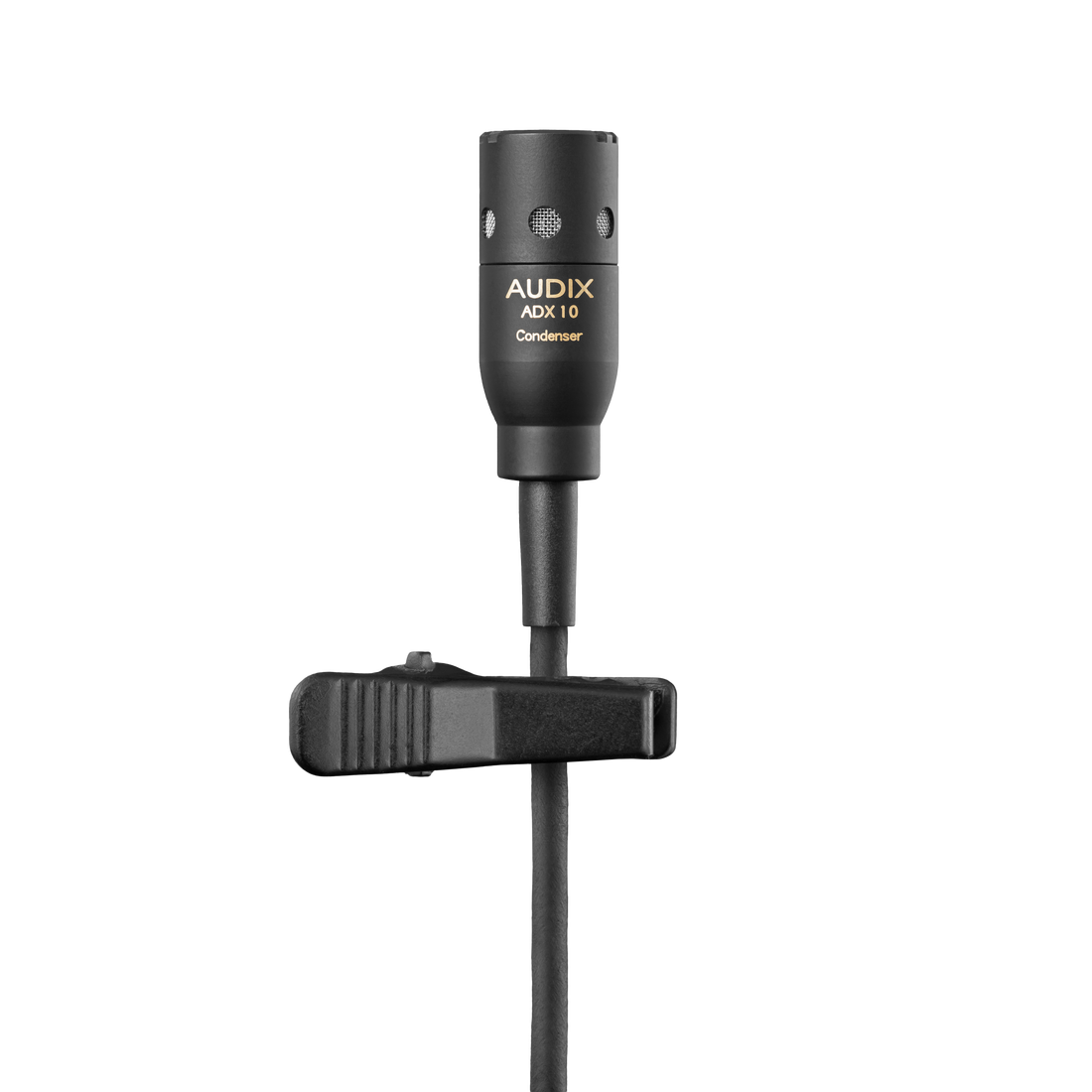

ADX10

Wireless Component Condenser Vocal Microphone

The ADX10 is a miniaturized condenser microphone designed for lavalier applications such as speech, presentation, and theatrical production. The ADX10 has the ability to accurately capture and reproduce vocals from a comfortable distance of 4″- 8″. This mic is clear, resistant to feedback, and easy to use.

Designed with a uniformly controlled cardioid polar pattern, the ADX10 helps to isolate the area or section being miked from other vocals or instruments on stage. The ADX10 has a smooth, accurate frequency range of 50 Hz – 18 kHz. This mic is lightweight, low profile, and has a natural sound with an exceptional sound response.

Primarily for use with Audix wireless systems, the ADX10 cardioid condenser microphone includes a tie-clip and a 3′ attached cable terminating to a mini-XLRf connector.

205
Where To Buy
  • Specifications
  • What’s in the Box?
Transducer Type Pre-polarized Condenser
Frequency Response 50Hz – 18kHz
Polar Pattern Cardioid
Output Impedance 250 Ohms
Sensitivity 5 mV/Pa @1k
Equivalent Noise Level <29 dB (A-weighted)
Signal to Noise Ratio >65 dB
Maximum SPL ≥120 dB
Power Requirements 9-52 V phantom
Connector Shielded 3’ terminating to a miniature 3 pin Female XLR connector
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish Machined Brass / Black Finish
Weight 21 g / 0.74 oz
Length 25 mm / .98 in
Download Spec Sheet

1 x ADX10 Vocal Microphone
1 x MC10L tie clip
1 x WS10 external foam windscreen
1 x P1 carrying pouch
