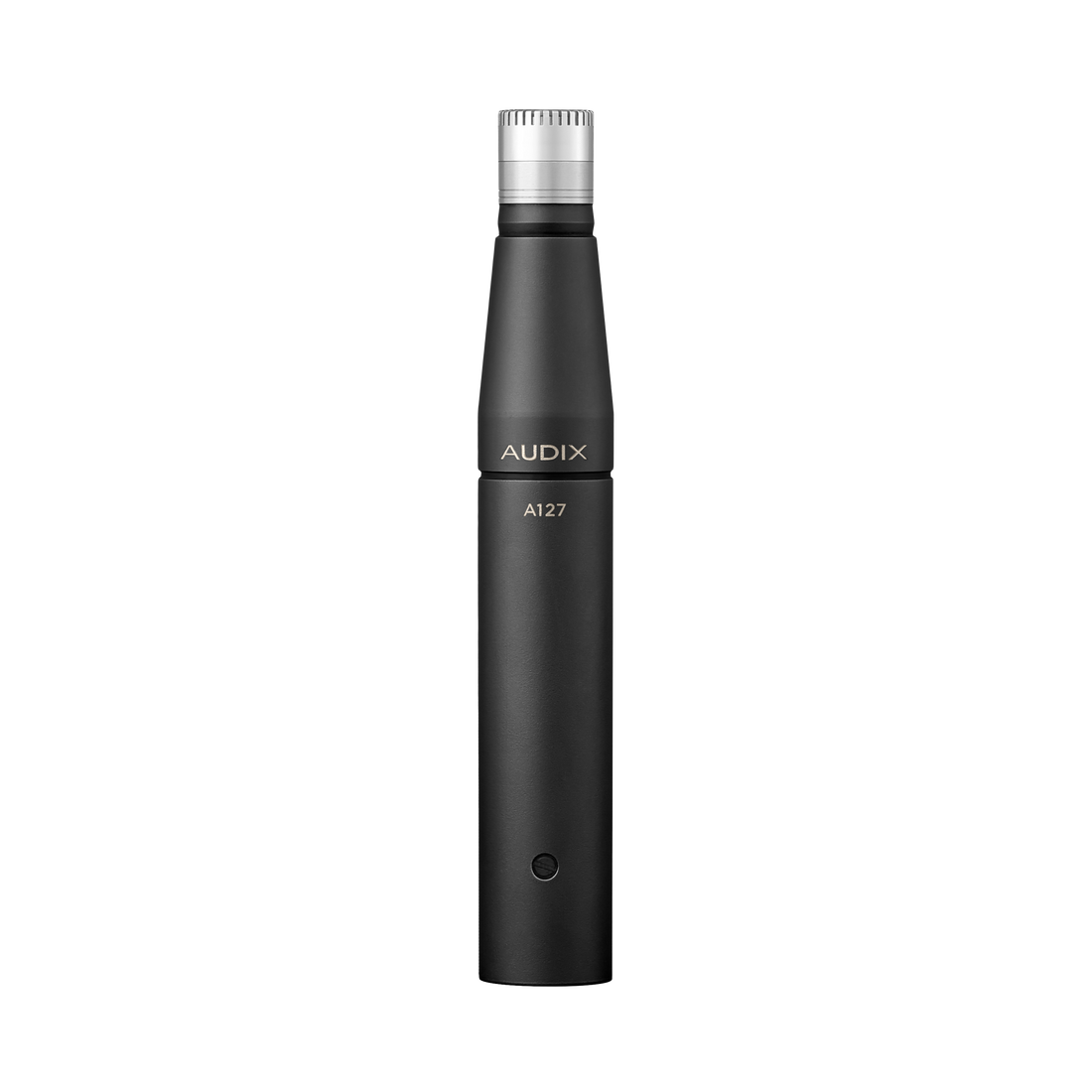

A127

Omnidirectional Metal Film Condenser Microphone

The A127 is an onmnidirectional metal film condenser microphone, designed to capture the most accurate and purest form of acoustic instruments and sound sources. The A127 delivers unmatched performance for recording, broadcast, film, and sound design.



• Pre-polarized half-inch Type 1 metal film capsule (IEC 61094-4 compliant)
• Omnidirectional polar pattern
• Excellent clarity, detail, and transient response
• Transformerless, low-noise circuitry
• Active driven shield


Where To Buy
  • Specifications
  • Details
  • User Tips
  • Videos
Transducer Type 1/2″ Type 1 metal film capsule (IEC 61094-4 compliant)
Frequency Response 10 Hz – 20 kHz
Polar Pattern Omnidirectional
Output Impedance 150 Ohms
Sensitivity 28 mV / Pa @ 1 kHz
Signal to Noise Ratio 88 dBA
Maximum SPL 140 dB SPL
THD + N .004% @ 94 dB SPL | 1.0% @ 140 dB SPL
Equivalent Noise Level 7 dBA
Dynamic Range 133 dB
Connector 3-pin XLR m
Power Requirements 48 V +/- 4 V Phantom
Power Consumption 3 mA
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Brass / Nickel
Dimensions 19 mm x 122 mm
Weight 123 g
Download Spec Sheet

DESCRIPTION

A127 is an omnidirectional metal film condenser microphone, designed to capture the most accurate and purest form of acoustic instruments and sound sources. Fundamental to the A127 design is the low-noise Type 1 metal film capsule and precision-machined electro-mechanical components. The A127 delivers unmatched performance for recording, broadcast, film, and sound design.

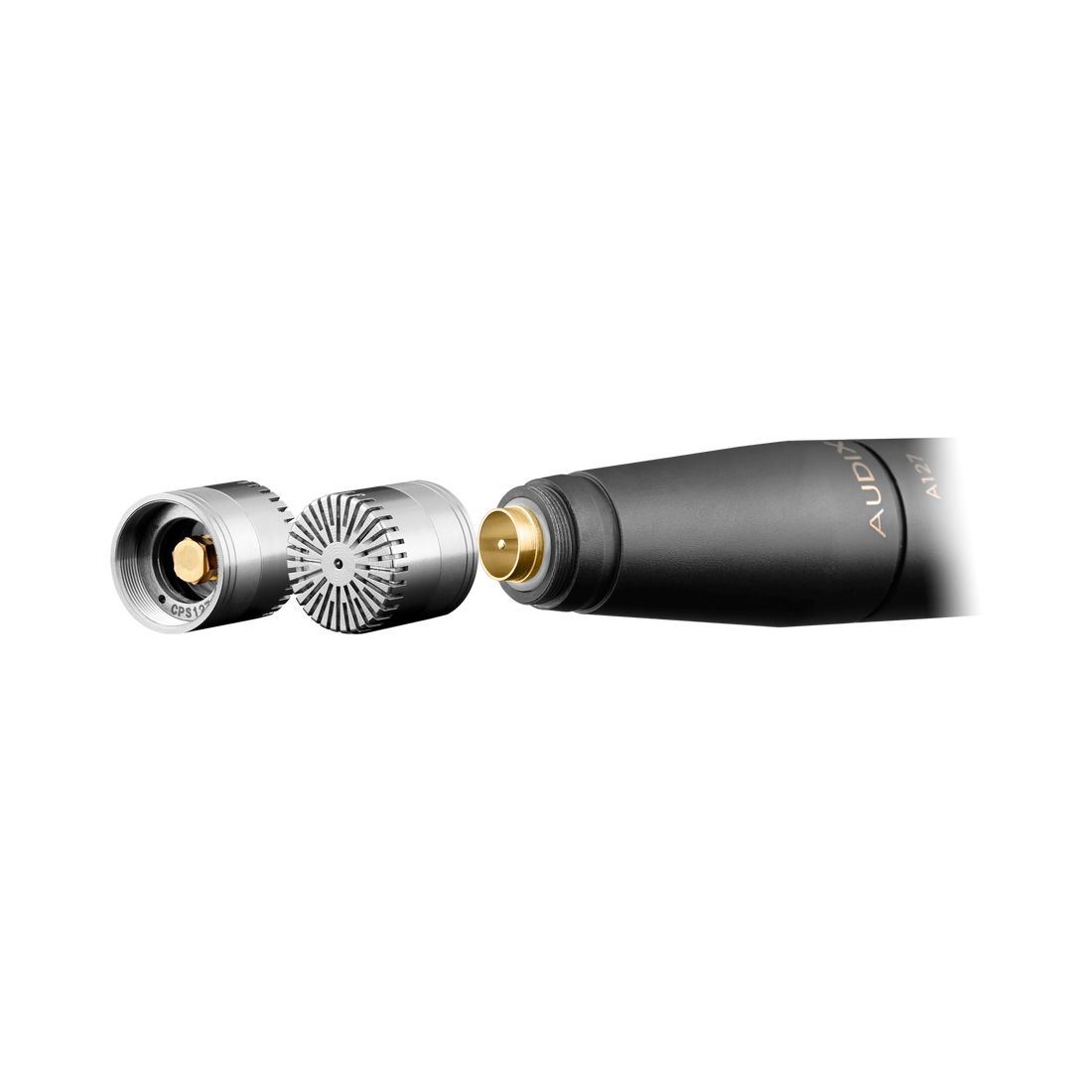

With a frequency response of 10 Hz – 20 kHz and a wide dynamic range of 133 dB, the A127 excels in the most demanding applications. Capsule design features a precision-tuned 3-micron metal diaphragm, resulting in an exceptionally accurate and stable response with ultra-low self-noise of 7 dBA. The A127 circuit is designed and built to exacting specifications and is coupled to the capsule by a series of driven shields to protect the microphone from external interference and capacitance coupling. The mechanical components of the gold-plated shield and the corrosion-resistant housing are precision-machined by Audix in Wilsonville, Oregon.

ADVANTAGES OF THE HALF-INCH FILM CAPSULE

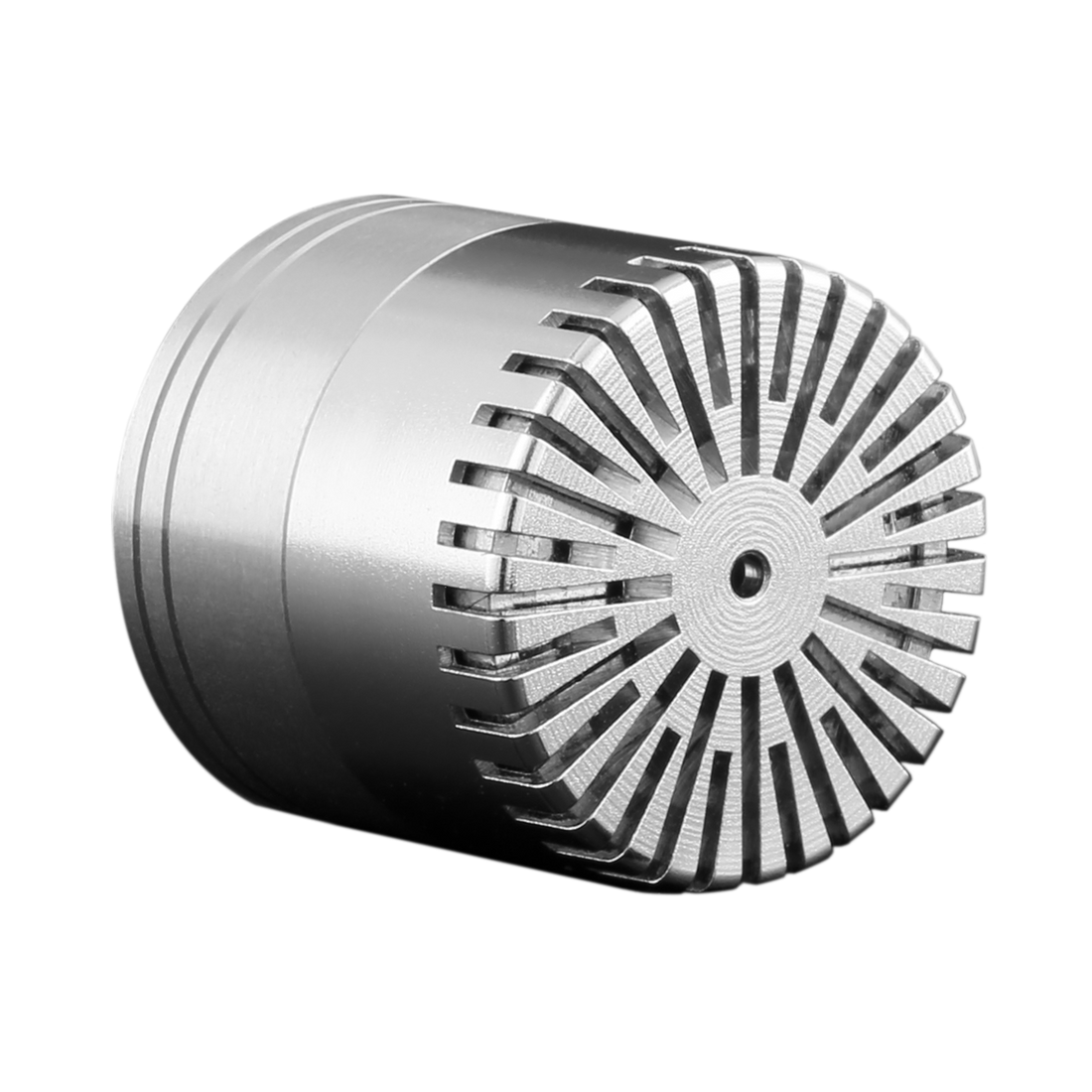

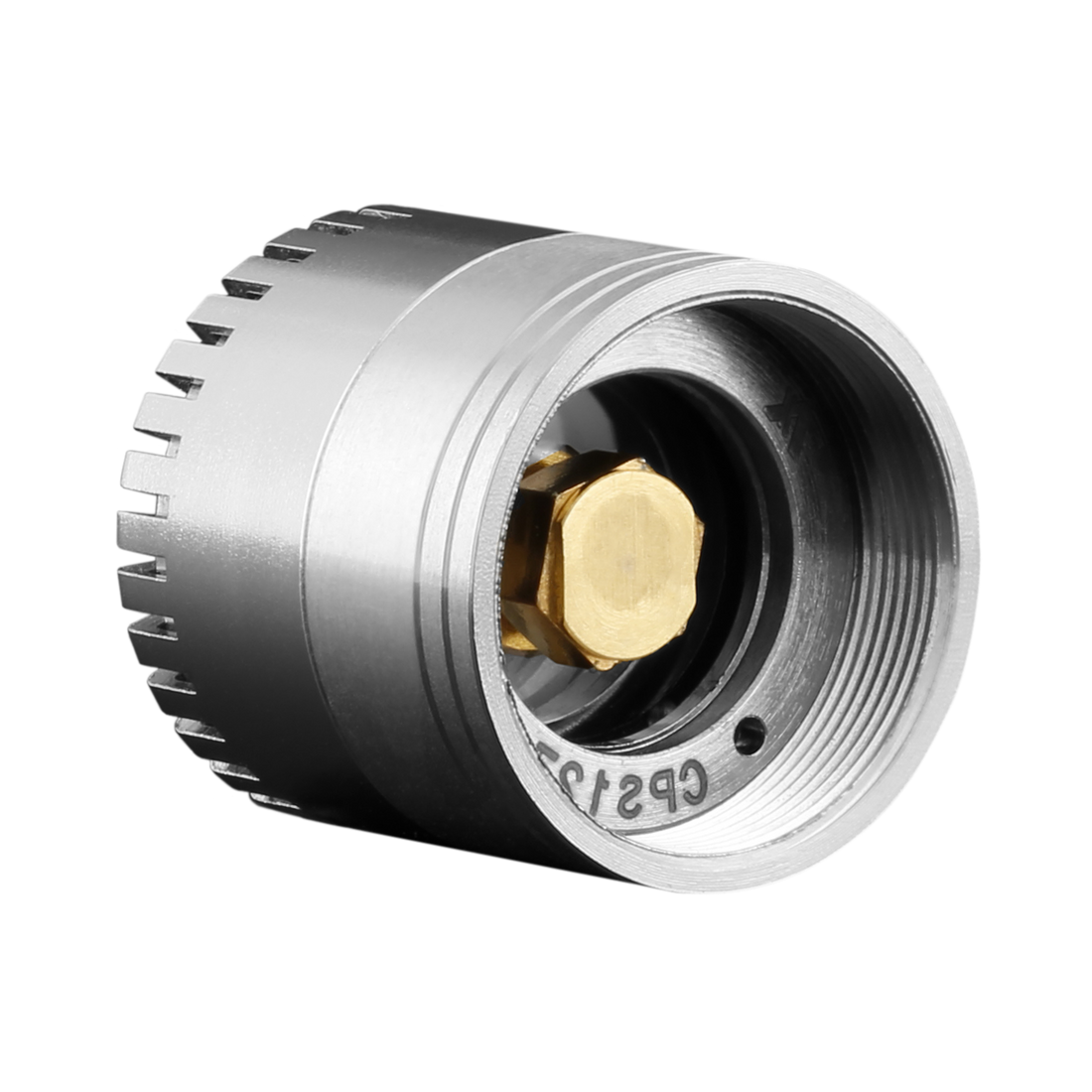

The A127 features a reference-grade capsule (Type 1 IEC 61094-4 compliant) with a precision-tensioned metal film diaphragm, providing consistent and reliable performance, even in the most demanding environments. The half-inch size of the diaphragm represents the “sweet spot” for acoustic sound capture, which is why it has become the standard for acoustic measurement. The ultrathin, 3-micron metal film diaphragm provides excellent transient response and a level of detail and realism simply not attainable with conventional diaphragm materials.

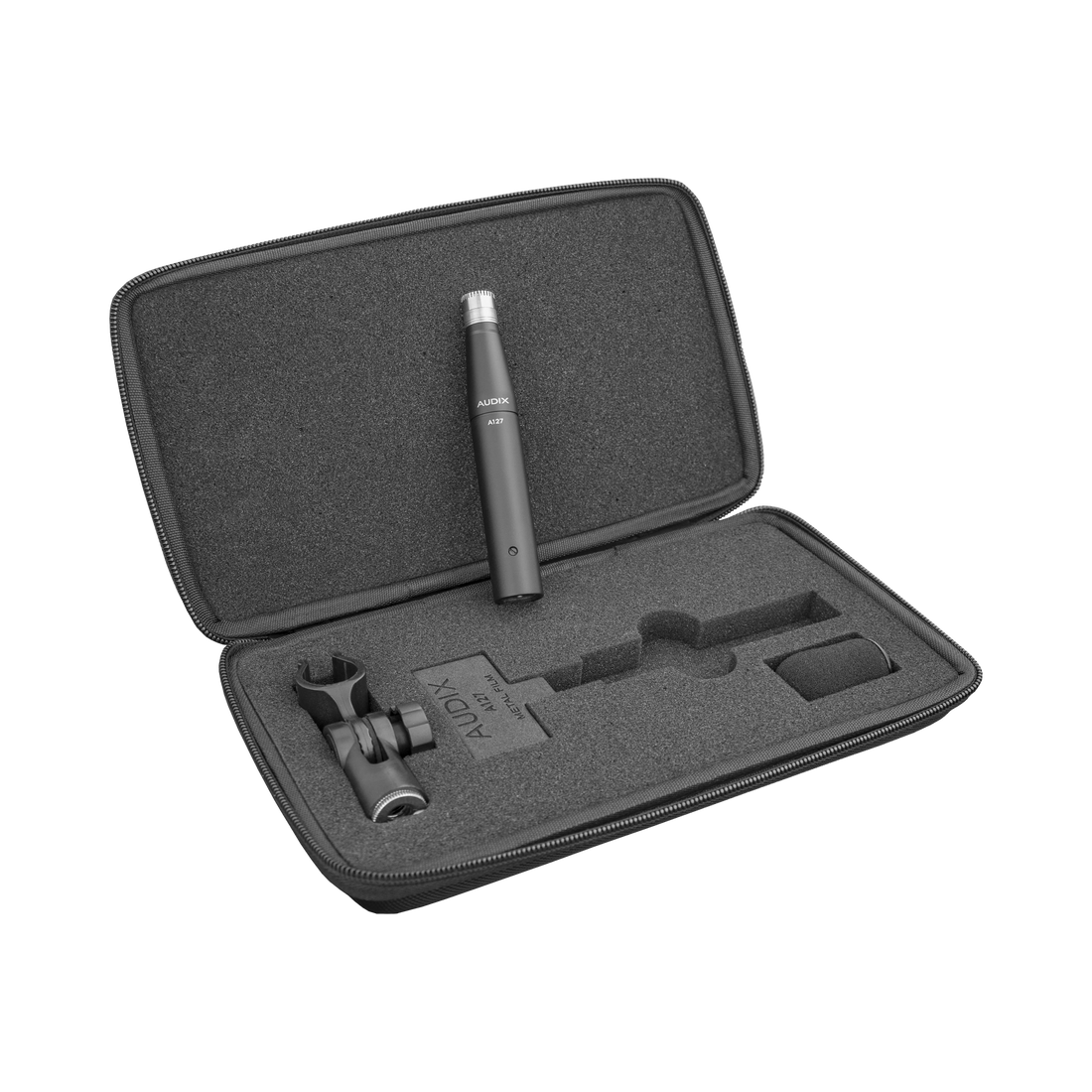

SUPPLIED ACCESSORIES

  • DCLIP – Heavy-duty nylon molded snap-on clip
  • POUCHAXSM – Protective zippered carrying case
  • WSA127 – Acoustical windscreen

OPTIONAL ACCESSORIES

  • APS2 – Two-channel 48 V phantom power supply with 110 V switchable to 240 V and detachable power cord
  • DFLEX – Dual pivot rim mounted clip with extra-wide butterfly jaws
  • CBL20 – 20’ premium XLR-XLR balanced mic cable. Quad conductor, twisted-pair with a braided shield for conductivity. 6 mm PVC-jacketed
  • PD133 – Pop diffuser to control plosives
  • SMT25 – Shockmount suspension system

MIKING TIPS

For musical applications such as symphony orchestra, strings, brass, choir, pipe organ, percussion and other acoustic instruments, the phase response, accuracy and clarity of the A127 make it the perfect choice for spot miking, as well as mid-field and far-field applications. Metal film omnidirectional microphones are able to capture the complete character, tonality, and essence of an instrument in the most uniform and accurate fashion.

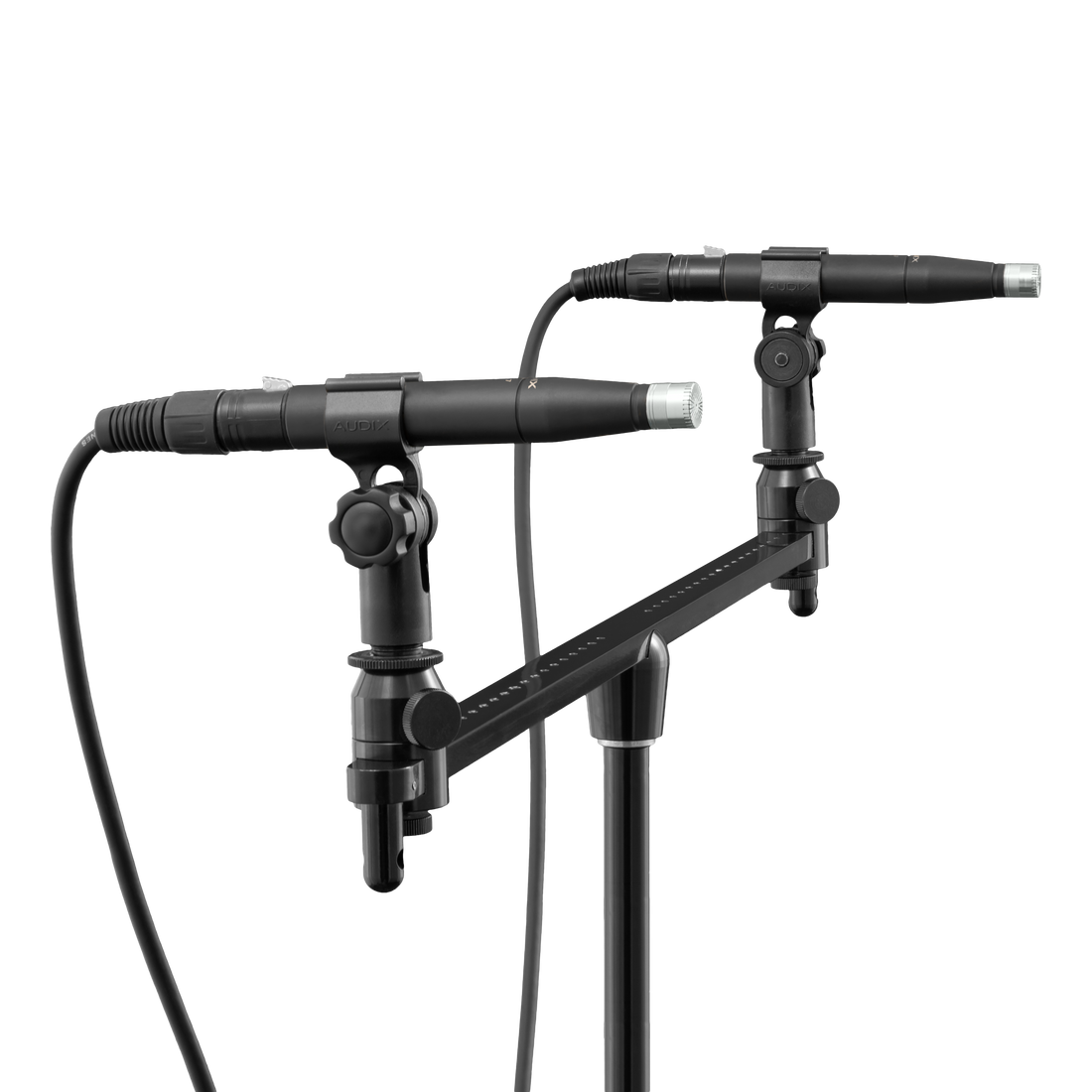

With its omnidirectional polar pattern, the A127 excels as a room mic and can be incorporated into a variety of stereo miking techniques. Professional recording engineers often use a stereo pair of omnidirectional microphones for recording orchestra, stringed instruments and string ensembles, piano and piano ensembles, classical guitar, pipe organ and choir. Depending on the size and acoustics of the room, omnidirectional microphones will most accurately recreate the experience of being in the audience.

Given its compact size, low-noise preamp and extraordinary stability, the A127 is ideal for field recording, documentaries, sound gathering, and acoustic measurements.

Further miking techniques may be found on the How To’s page.
