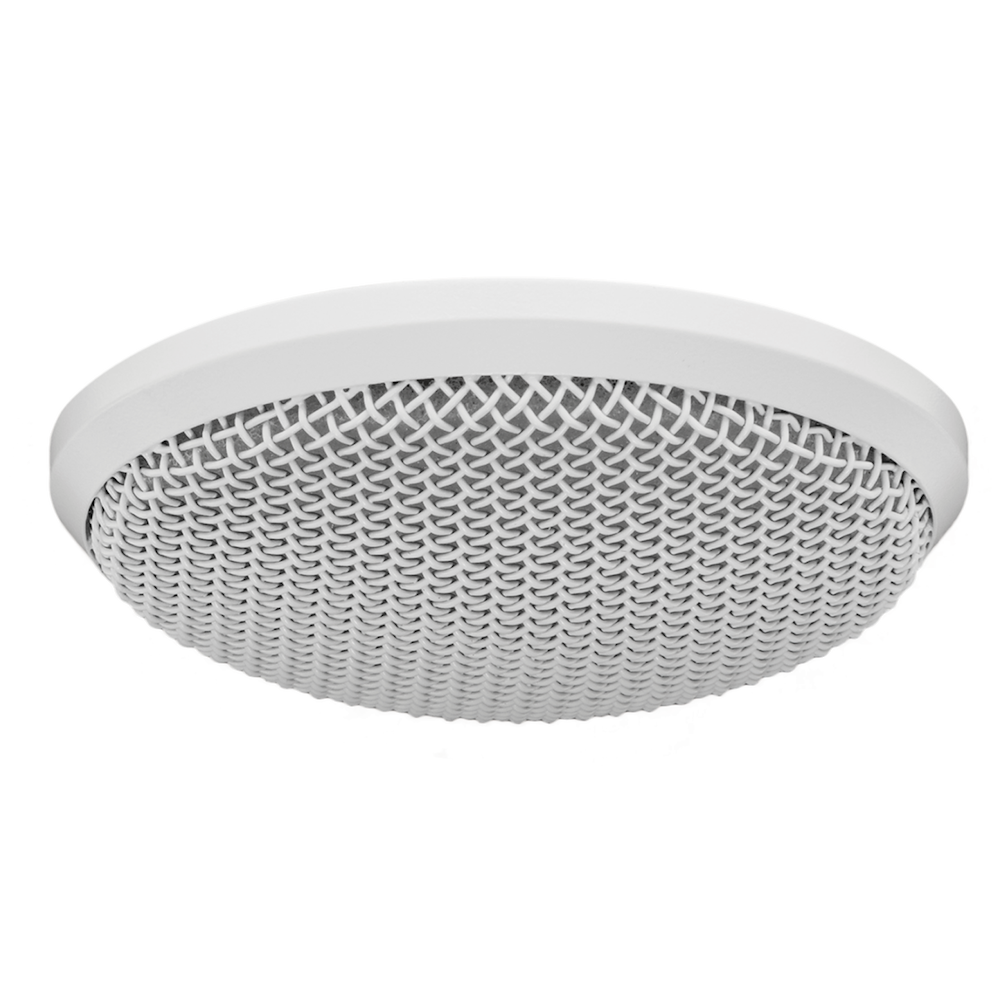

AX M70WD
Flush-Mount Ceiling Microphone for DN4 Dante | AES67 System
- High output for distance miking
- Immunity from RF interference
- Miniaturized integrated preamp circuitry
- 12 mm gold vapor diaphragm
- RJ45 connectors for integration with the Audix Dante–AES67

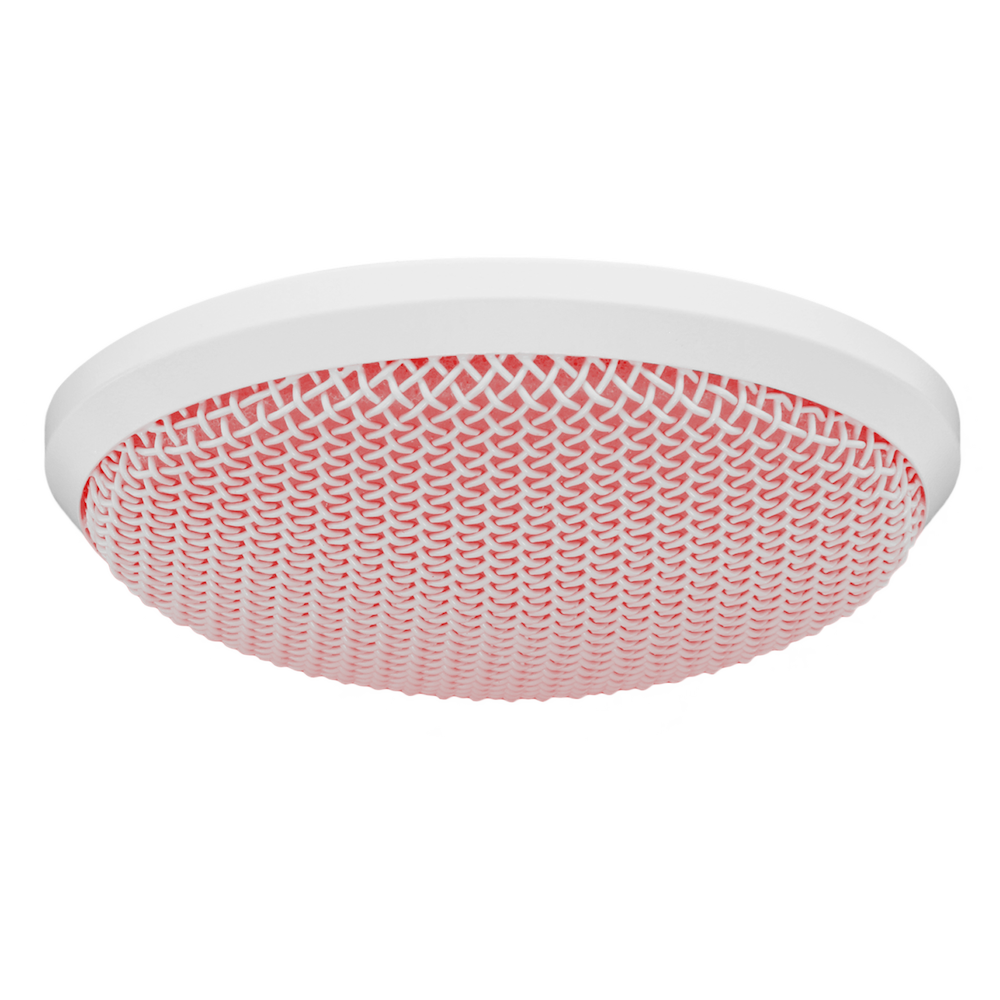

The M70WD is a steerable, flush-mount condenser microphone designed for distance miking in a variety of applications, including video conferencing, distance learning, hospital rooms, surveillance, and ambient room miking. The flush-mount configuration and a footprint of only three inches in diameter allow the M70WD to virtually disappear. Dual-color LEDs can be set via a plugin to indicate mic status.
The M70WD capsule is housed within a patented cradle that allows the microphone to be aimed up to an angle of 45 degrees. Other features include a fully integrated preamp and an extremely high sensitivity rating of 38 millivolts. In addition, the M70WD has complete immunity from RF interference caused by cell phones and GSM devices. Installing the M70WD requires just one 2-inch hole in the ceiling, with no additional tools needed.
(Requires DN4 or DN43 microphone interface, sold separately)
DANTE MADE SIMPLE – BY AUDIX
The M70WD is designed exclusively for the AUDIX Dante | AES67 Integrated Microphone System, which delivers high-quality audio and all microphone functions – including on-off contact closure and LED status indicators – through a single CAT5 – CAT7 cable with RJ45 connections. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost. And like all AUDIX microphones in the system, the gain structure is optimized for its intended use, providing quality audio at the DSP. The result is a true plug-and-play installation.
Find Online
The M70WD capsule is housed within a patented cradle that allows the microphone to be aimed up to an angle of 45 degrees. Other features include a fully integrated preamp and an extremely high sensitivity rating of 38 millivolts. In addition, the M70WD has complete immunity from RF interference caused by cell phones and GSM devices. Installing the M70WD requires just one 2-inch hole in the ceiling, with no additional tools needed.
(Requires DN4 or DN43 microphone interface, sold separately)
DANTE MADE SIMPLE – BY AUDIX
The M70WD is designed exclusively for the AUDIX Dante | AES67 Integrated Microphone System, which delivers high-quality audio and all microphone functions – including on-off contact closure and LED status indicators – through a single CAT5 – CAT7 cable with RJ45 connections. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost. And like all AUDIX microphones in the system, the gain structure is optimized for its intended use, providing quality audio at the DSP. The result is a true plug-and-play installation.
Flush Mount Ceiling Microphone
for Clear, Interference-Free Distance Miking
Specifications
-
Polar Pattern CardioidSensitivity 38 mV/Pa @ 1kMaximum SPL ≥108 dB dBLength 13.5 cmTransducer Type Condenser dynamic / electret
-
Frequency Response 60 Hz - 10 kHzOutput Impedence 150 ΩConnector Terminal block connectorMinDiameter 51 mmMaxDiameter 64 mm
-
Coverage Examples
Coverage patterns may vary depending on room acoustics and signal chain, but these diagrams provide a conservative estimate of expected pick-up in reasonable to poor acoustic spaces.
Class Room
Room Dimension: 20’x20’ Square
Ceiling Height: 8’–10’
Huddle Room
Room Dimension: 8’–12’ Square
Ceiling Height: 8’–10’
Conference Room
Room Dimension: 10’ x 20’
Ceiling Height: 8’–10’
Multiroom deployment
Experience seamless multiroom deployment with the AUDIX DN4. Offering advanced Dante/AES67 network audio input and adaptable preamp control, the DN4 is ideal for microphone installations across multiple rooms. Ensure unparalleled flexibility and precision in managing audio across diverse spaces.
